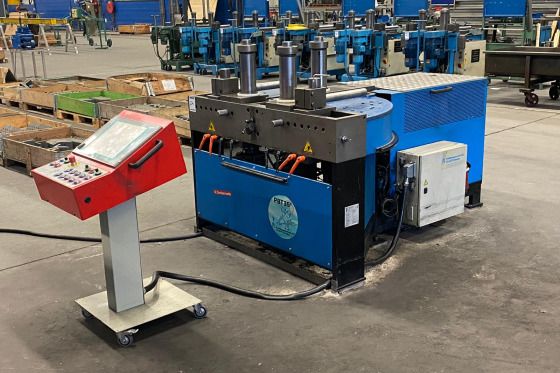

PBT PBT 35

Control: PC 300 TOUCH
Vertical configuration
3 rolls
Shaft diameter: 105 mm
X-axis stroke: 390 mm
Force pressure on X-axis: 35,000 kg
Hydraulic variomatic drive
Roller adjustment range: 360–1100 mm
Motor power: 11 kW each
Working speed: 1–16 rpm
Resistance moment: 3000 Nm·cm3
UNP capacity: 200 × 1200 mm
T-profile capacity: 100 × 100 × 10 × 1200 mm
Bar capacity: 80 × 80 × 1400 mm
Pipe capacity: 180 × 2000 mm
Length: 1850 mm
Width: 1600 mm
Height: 1400 mm
Weight: 2200 kg
