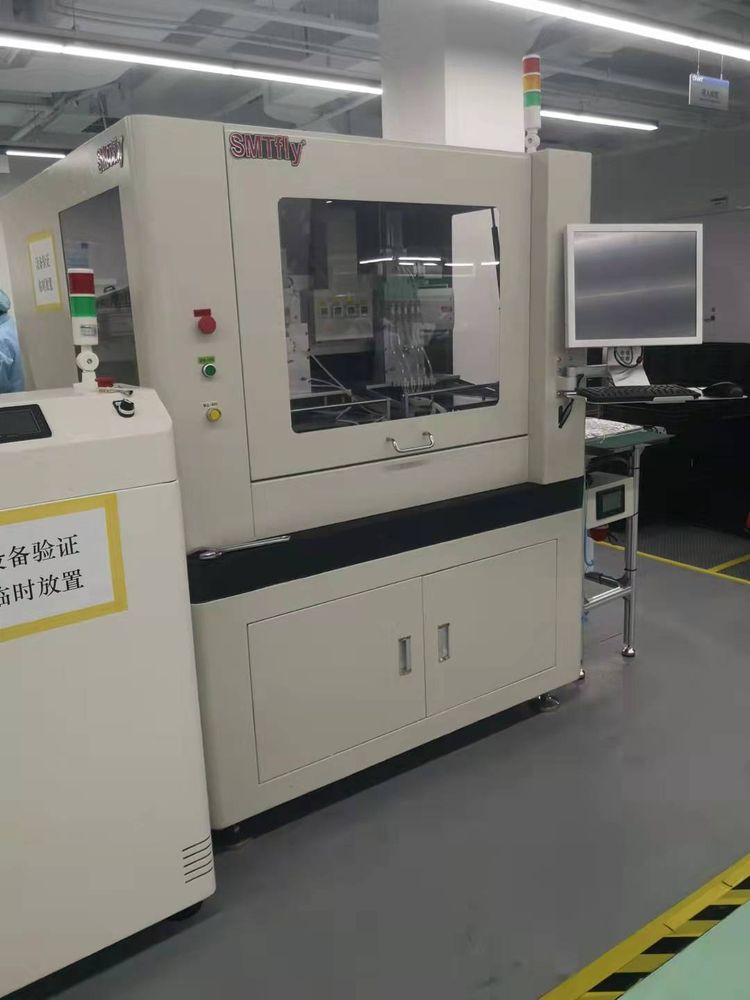

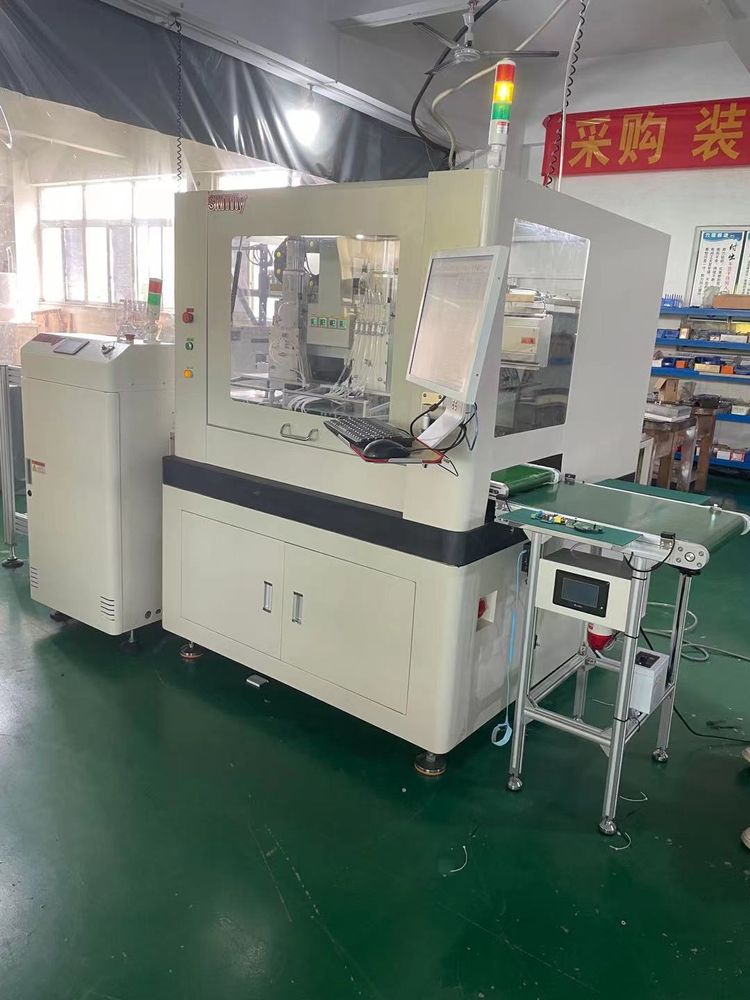

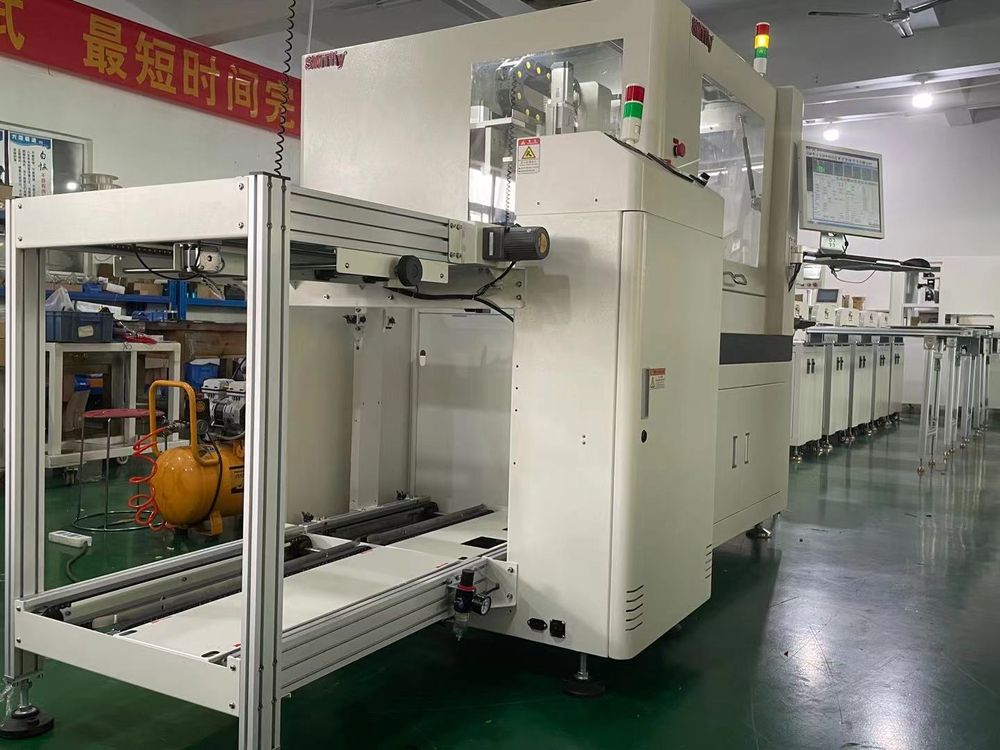

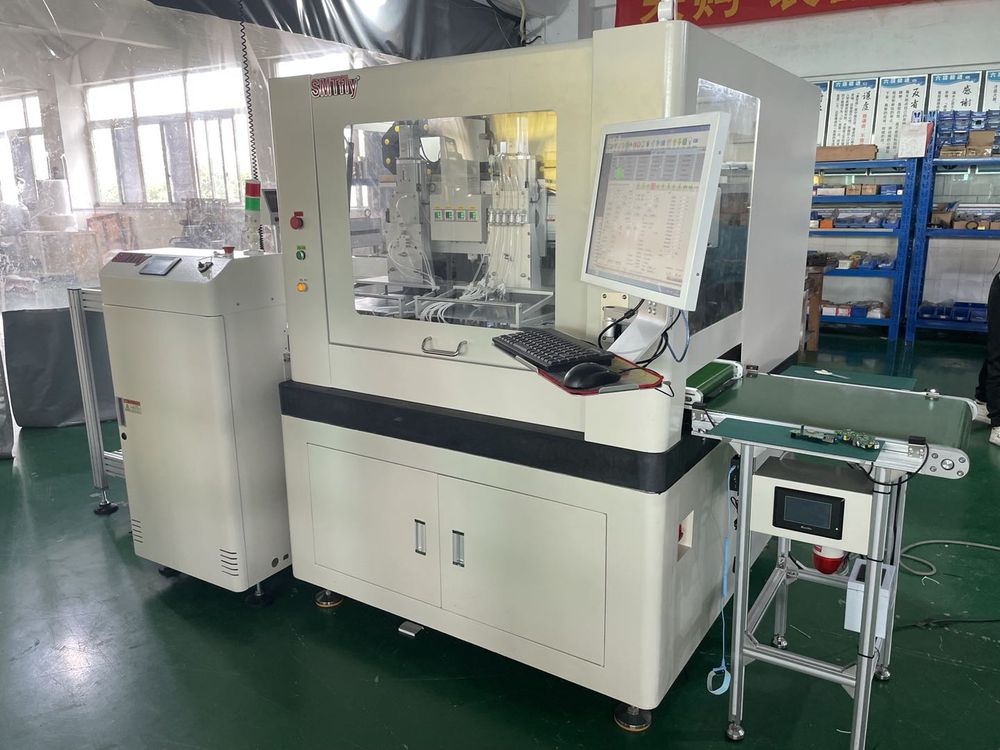

PCB Router Machine with Manual Bit Change & Dual Vacuum Blow 2 Station 0.5 - 3.0mm

Product Specification:
PCB Router Machine with Manual Bit Change & Dual Vacuum Blow 2 Station 0.5 - 3.0mm Specification Setting Fixture : 2 stations Working Area : X: 320mm, Y: 320mm, Z: 60mm Cutting Area : Max: X: 320mm, Y: 320mm　Min: X: 100mm, Y: 100mm Z: 15mm PCB Component Height : Top side: 15mm Bottom side: 45mm(with specific jig) PCB Thickness : 0.5 to 3.0 mm Router Bit Diameter : 0.8 ~ 2.0 mm(Option: Over 2.0mm) Precision of Cutting : ± 0.10 mm Positioning Accuracy : ± 0.01mm Positioning Repeatability : ± 0.02mm Number of Axis in use : 7 Axis (X, YL, YR, Z, Carry, P/P, Conveyor). Driving Speed (Max) : X, YL, YR : 1000mm/sec, Z: 750mm/sec Cutting Speed (Max) : X, Y, Z: 100mm/sec (It's according to the specification of Bit for the best speed setting ) Spindle Motor : High speed variable frequency motor 150W (Max.50,000rpm) Bit Change : Manual Cutting Ability : Linear, Circular, U-curve, Arc, L-curve Motor of Axis : 7 Axes (150W AC Servo motors) Bit Shift Count : Max. 2 Route Planning : Direct coordina
