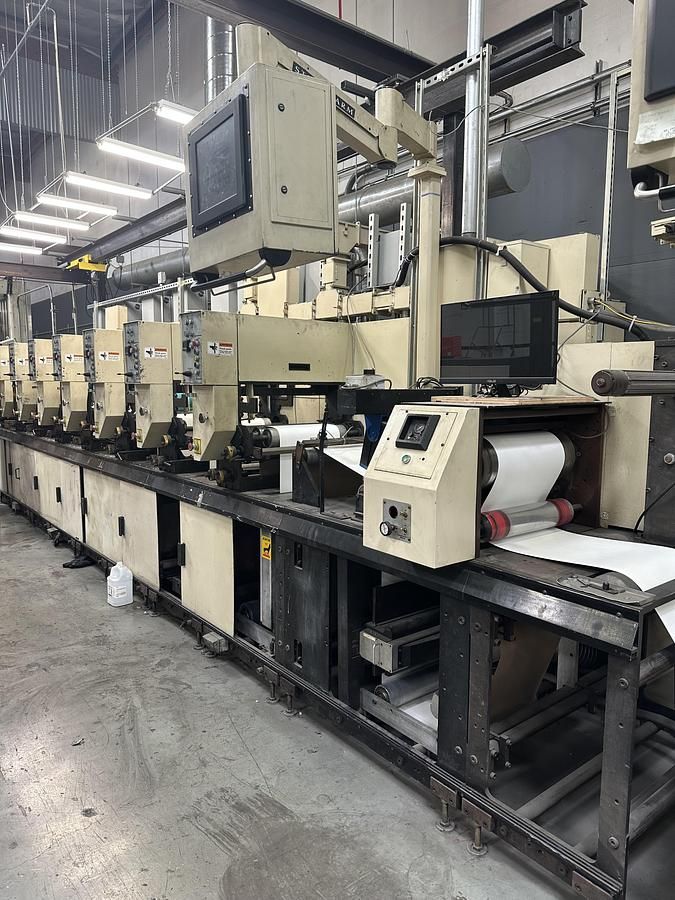

PCMC Flexo 8 457mm

18” 8 color Flexo with board printer and die cutter
UV in 8th color station and in line Kemp Smith Die cutter and stripping drum.
Martin Automatic Butt Splicer unwind stand upgraded automatic registration system.
comes with stripping drums, anilox rollers, print cylinders.

1. 18 1/2" (470mm) flexographic board printing and die-cutting press, consisting of various sections as described.
Web flow while standing at the operators station is left to right.
2. General specifications:
Maximum height: 90” (2286mm)
Maximum depth: 72” (1829mm)
Maximum printing width: 18" (457mm)
Maximum paper width: 18 1/2” (470mm)
Maximum die-cutting width: 18” (457mm)
Repeat length range: 6” to 24" (152mm to 610mm)
Die-cutting repeat: 9” to 24” (229mm to 610mm)
Maximum unwind diameter: 72” (1828 mm) Martin
Automatic MBX 5-22-72
Print to print registration : +/-.006” Board stock on 2
sigma limits, over 300 feet of sampling at steady speed.
Substrate must meet the following conditions

1) Coefficient of web elasticity shall not vary more than 5% within 300 ft. of web,
2) Material caliper must not vary more than +/-.004” within 300 ft of web,
3) Moisture profiles must not vary more than 0.5% within 300 ft of web,
