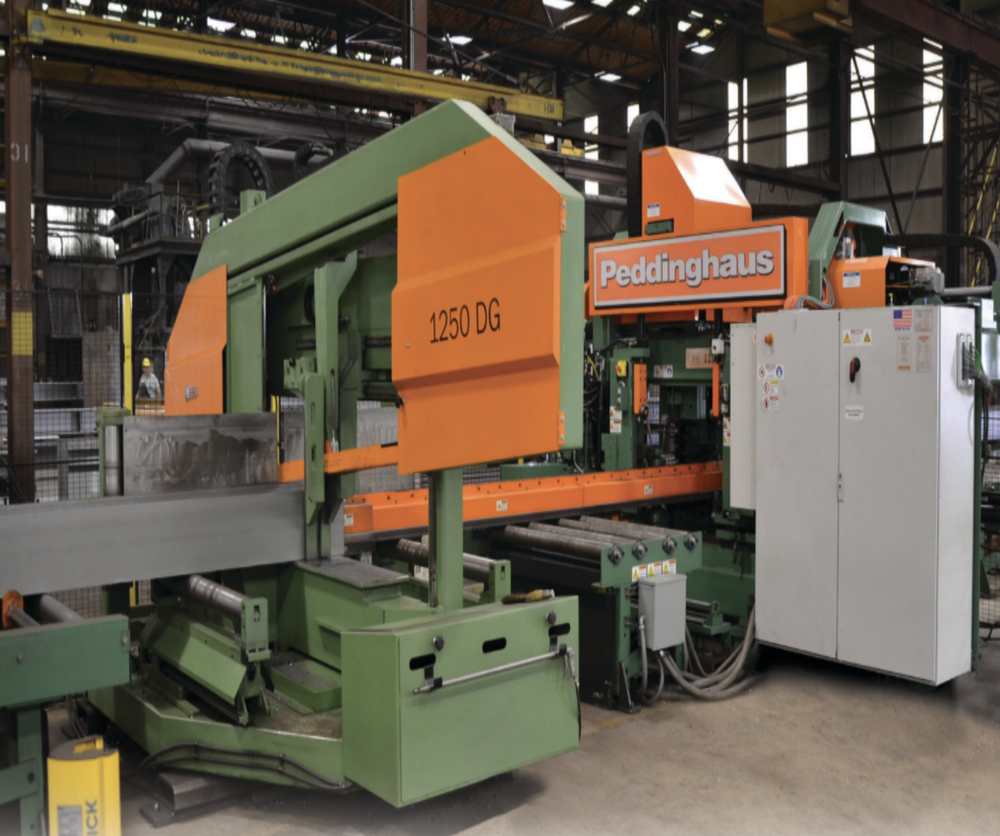

Peddinghaus ADVANTAGE #2 DG1250 Band Saw SemiAutomatic

Maximum Profile Weight: approx. 18,000 lb
Number of Spindles: 3
Number of Drilling Axes: 3
Tool Changers: 3
Tool Changer Stations per Spindle: 5
Spindle Speed Range: 0–3,000 rpm
Spindle Motor Power: 25 HP
Spindle Duty Cycle: S6 40%
Tool Holder Type: CAT 40
Minimum Drill Diameter: 3/8 in
Maximum Drill Diameter: 1-9/16 in
Minimum Tap Size: 3/8 in
Maximum Tap Size: 1-9/16 in
Minimum Countersink Diameter: 7/16 in
Maximum Countersink Diameter: 1-9/16 in
Drilling Function
Milling Function
Tapping Function
Countersinking Function
4-Axis Carbide Scribing
Beam Processing Capability: 2 in × 2 in to 18 in × 44 in
Channel Processing Capability: 2 in × 2 in to 18 in × 44 in
Tube Processing Capability: 2 in × 2 in to 18 in × 24 in
Angle Processing Capability
Flat Material Processing Capability
1250-600 DG Miter Band Saw
Laser Line Option
Micro Mist Coolant Option
Hold Down Clamps
Quiet Glide Standard Duty Loader
Standard Duty Entry Roller Modules
Standard Duty Exit Roller Modules
Quiet Glide Standard Duty Transfer System
