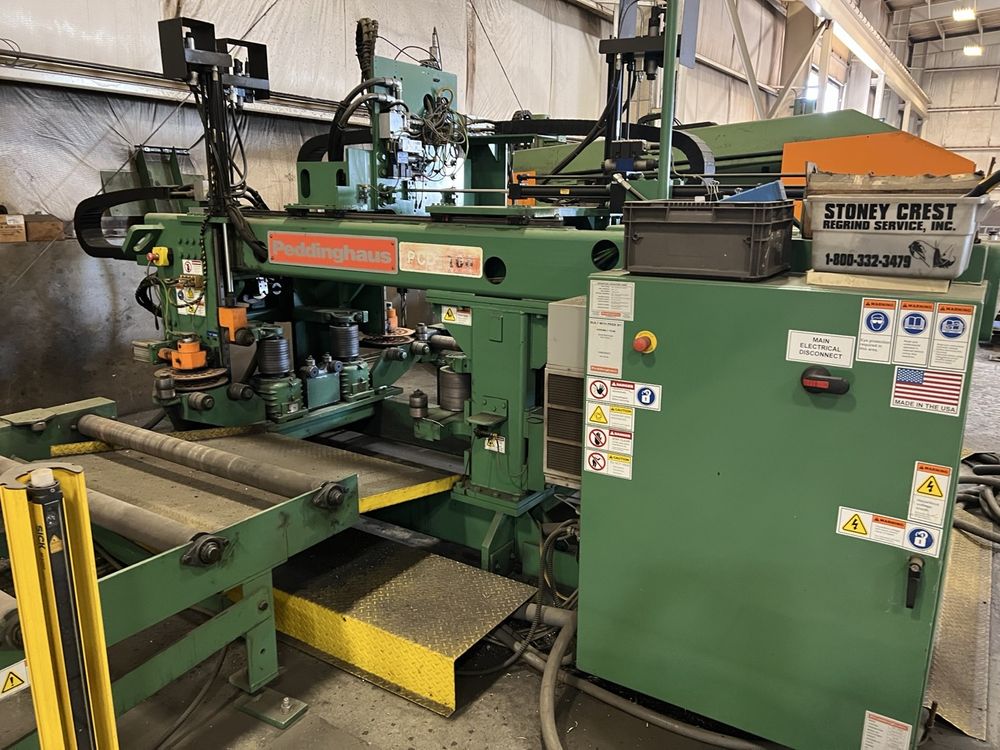

Peddinghaus PCD 1100/3B Advantage 800 RPM

Maximum Profile Width 44"
Maximum Profile Height 18"
Minimum Profile Width 3"
Drill Tooling Type #4 Morse Taper

Maximum Drill Diameter 1-9/16"
Maximum Work Piece Weight 18,000 Lbs
Max Beam Width 44"
Max Beam Height 18"
Machine Footprint 240" L × 96" W × 96" H
Weight 10,500 lbs
Spindle Count 3
Spindle Power 13.5 HP each
Max Spindle Speed 800 RPM
Tooling Type Morse Taper
Voltage Requirement 460V / 3-phase / 60Hz / 90 kVA
Peddinghaus 1250 DG Saw
Rollers
