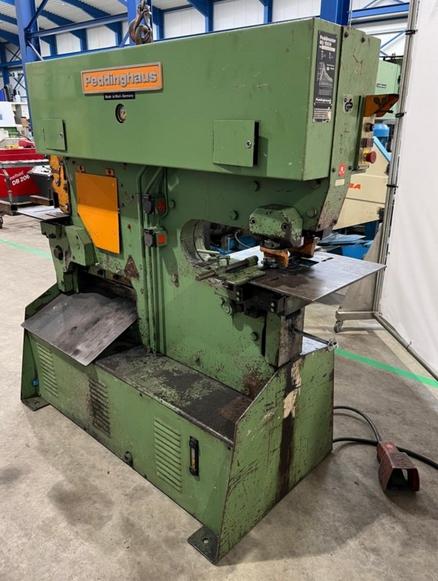

Peddinghaus Peddimaster 60/100 H Punching Pressure: 60 t

Ref : 2748428-3-AW

Condition : Used

Manufacturer : Peddinghaus

Model : Peddimaster 60/100 H

Pressure : Punching Pressure: 60 t

Year(s) : 1985

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Control Type: Conventional
Round Bar Steel Capacity: 45 mm
Square Edge Steel Capacity: 40 mm
L-Beam Capacity: 120 x 13 mm
Flat Steel Capacity: 500 x 12 mm
Throat: 510 mm
Flat Steel Shear Capacity: 500 x 12 mm
Flat Steel Shear Capacity: 400 x 16 mm
Punch Diameter: 27 in 17 mm
Punch Diameter: 39 in 12 mm
Oil Volume: 80 l
Total Power Requirement: 7.5 kW
Weight: 2.4 t
Dimensions: 1.8 x 0.9 x 1.8 m
Hydraulic Machine with 5 Stations
Punching, Notching, Shearing Flat Iron
Angle Iron, Solid Material
Punching with Hand Lever
Profile Steel Side with Foot Switch
Punching Discharge: 510 mm
Electric: 380 Volt
