Peddinghaus PEDDIWORKER 501 50 t
Ref :
2723916-3-MT
Condition :
Used
Manufacturer :
Peddinghaus
Model :
PEDDIWORKER 501
Pressure :
50 t
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

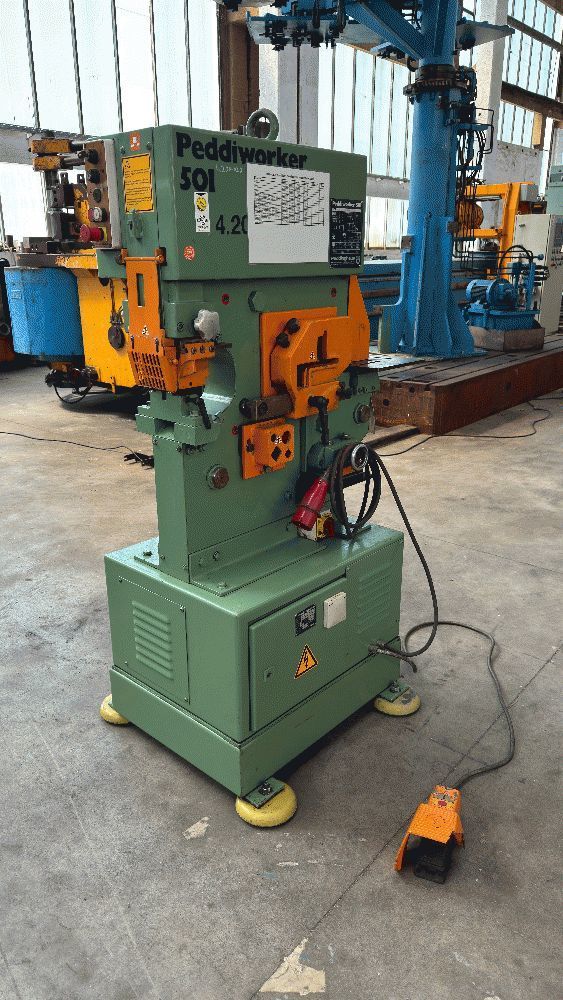

PEDDINGHAUS PEDDIWORKER 501
Maximum press force: 50 t
Flat steel shear capacity: 150 x 15 mm or 180 x 18 mm
Angle steel shear at 90°: 100 x 10 mm
Angle steel shear at 45°: 50 x 6 mm
Profile steel shear at 90°: 80 x 8 mm
Profile steel shear at 45°: 50 x 6 mm
Round bar shear capacity: 32 mm
Square bar shear capacity: 30 x 30 mm
Notching capacity: 60 x 6 mm
Sheet thickness capacity: 10 mm
Notch width: 42 mm
Notch depth: 55 mm
Punching force: 50 t
Stroke range: 10–28 mm
Punching capacity: 27 mm diameter in 14 mm sheet
Throat depth: 155 mm
Motor power: 4.0 kW
Oil capacity: 40 l
Dimensions (L x W x H): 650 x 1200 x 1670 mm
Weight: 840 kg
