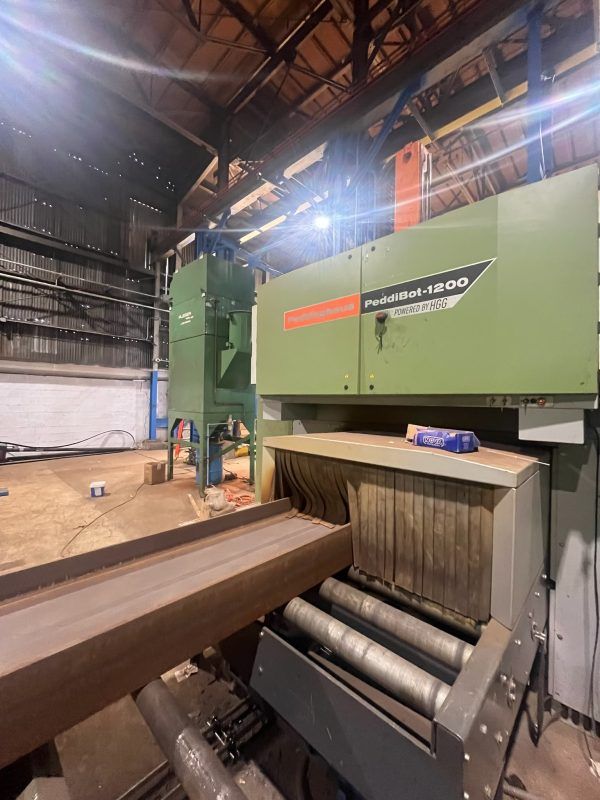

Peddinghaus PEDIBOT CNC Controller

6-axis robotic thermal cutting machine
Maximum profile dimensions: 48 × 16.5 in
Minimum profile dimensions: 3 × 3 in
Maximum profile thickness: 2 in
Minimum profile thickness: 0.1875 in
Maximum profile weight: 26455 lb
Maximum bevel angle: 45°
Material processing: 4 sides
Maximum plasma edge start thickness: 2 in
Maximum plasma piercing thickness: 2 in
Plasma cutting speed: 20 ipm at 2 in
Plasma cutting speed: 70 ipm at 0.25 in
Torch current: 440 A
Plate width: 7.875–48 in
Plate thickness: 0.3125–1.625 in
Plate length: 11.8125–120 in
Effective cutting zone: 48 × 59 in
6-axis Stäubli robot arm
Kjellberg HiFocus 440i plasma torch
Raptor 3D CAD/CAM software integration
Trailing edge detection
Profile scanning system
4-sided layout marking
Machine housing
