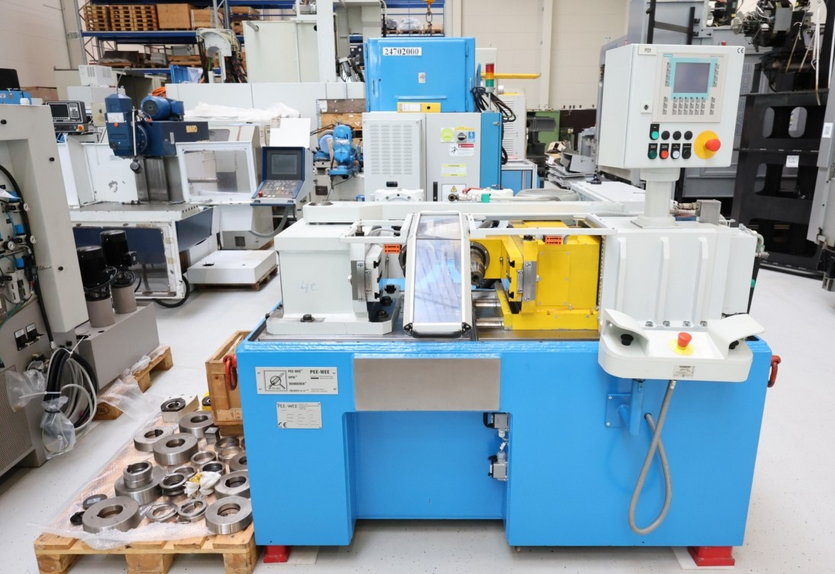

Pee Wee UPW 24 CNC Thread Rolling Machine
EUROPE (Western and Northern)
Control type: CNC
Roll pressure adjustable from: 117 kN
Feed fine adjustment: 0.5–45 mm/min
Turning speed: 0–80 rpm
Swivel angle of roller heads: 11°
Roller spindle diameter: 69.85 mm
Roller screw slide stroke: 0–150 mm
Min. distance between roller screws: 138 mm
Max. distance between roller screws: 285 mm
Min. rolling tool diameter: 230 mm
Max. rolling tool diameter: 135 mm
Min. workpiece diameter: 2 mm
Max. workpiece diameter: 55 mm
Thread length (plunge operation): 200 mm
Thread length (continuous operation): 2000 mm
Maximum thread pitch: 4 mm
Rolling spindle length: 200 mm
Rolling time adjustable from: 0.1 s
Pause time adjustable from: 0.1 s
Machine bed height: 810 mm
Rolling spindle height above bed: 200 mm
Height of support bearings: 115 mm
Largest pitch for serrated teeth: 2.5 mm (material strength up to 70 kg/mm²)
Total power requirement: 14 kW
Machine weight: 2.4 t
Machine dimensions: 2.0 × 2.5 × 1.9 m
