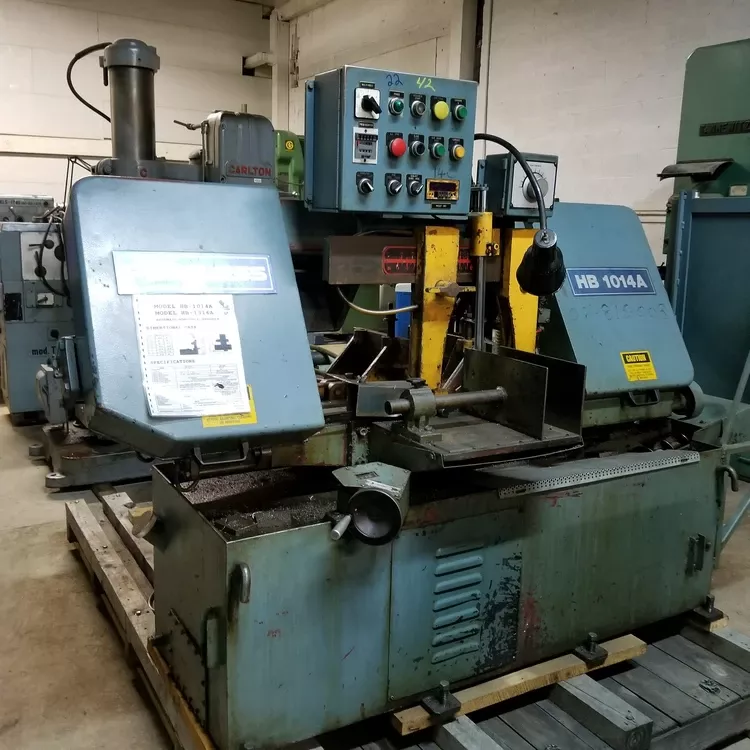

Peerless HB-1014A Band Saw SemiAutomatic

Rectangle cutting capacity: 10″ x 14″
Round cutting capacity: 13″
Blade size: 150″ x 1 1/4″ x 0.042″
Blade drive wheel diameter: 16″
Blade tension: Hydraulic
Blade twist angle: 57°
Blade guide system: Roller bearing with carbide-faced wiper
Hydraulic system motor: 1 HP
Hydraulic tank capacity: 16 gallons
Coolant system motor: 1/8 HP
Coolant reservoir capacity: 21 gallons
Stock index stroke: 24″
Stock indexing system: Digital readout handwheel with hydraulic piston
Index repeatability: ±0.005″
Drive motor: 5 HP, 230/460 V
Blade speed: 60–400 SFPM
Worktable height: 29″
Net weight: Approx. 3,630 lbs
Blade breakage switch
Variable frame height selector
Out-of-stock switch
Electric tachometer
Blade guard
Power-driven blade cleaning brush
Fast approach
Floating jaws (model 1316 only)
Chip auger conveyor (optional)
Variable vise pressure (optional)
Parts and operating manual
Long roller stock table included
Wired 220V 3-phase, dual voltage
Electrical update: 2000
