Perini 2700 rewinder type Delta with lamination
EUROPE (Western and Northern)

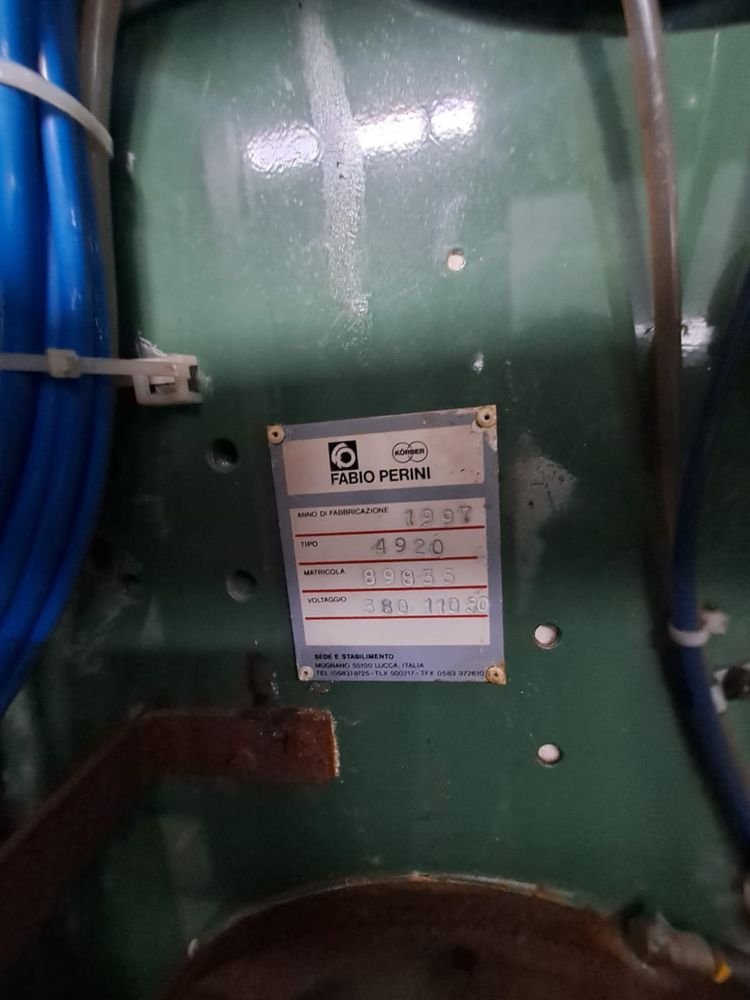

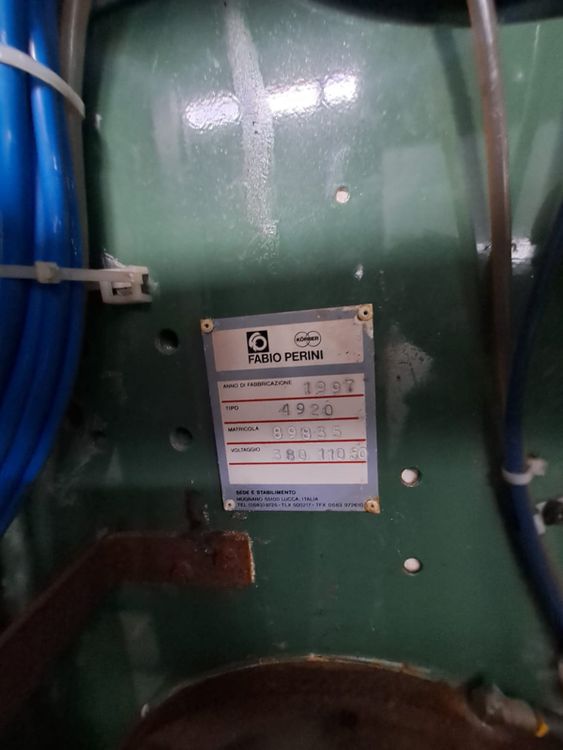

General: All is Perini make ,
recently stopped and still visble inline
Details:
Unwinder:
Max reel Diameter: 1200mm
Max Paper width: 2700mm
Reel loading: by pneumatic arms
Web tensioning: by dancing roll
Max speed: 400 mt/min
Color: green RAL

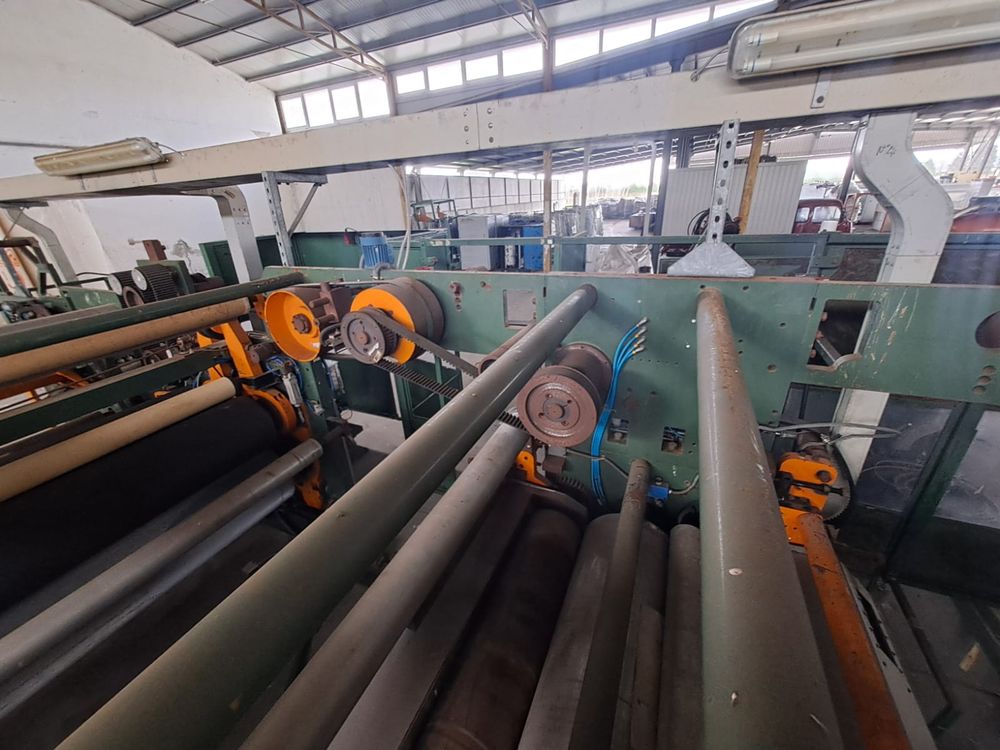

Transmission: mechanical by pulley and belt
Print Unit:
Number of colors: 2
Type: stack
Speed: 300 mt/min
Color: green
Transmission: mechanical by pulley and belt
Lamination unit:
Type: Tip to tip (point/point)
Model: 68.01
Max Paper width: 2700mm
Max speed: 350 mt/min
Color: Green
Transmission: mechanical by pulley and belt

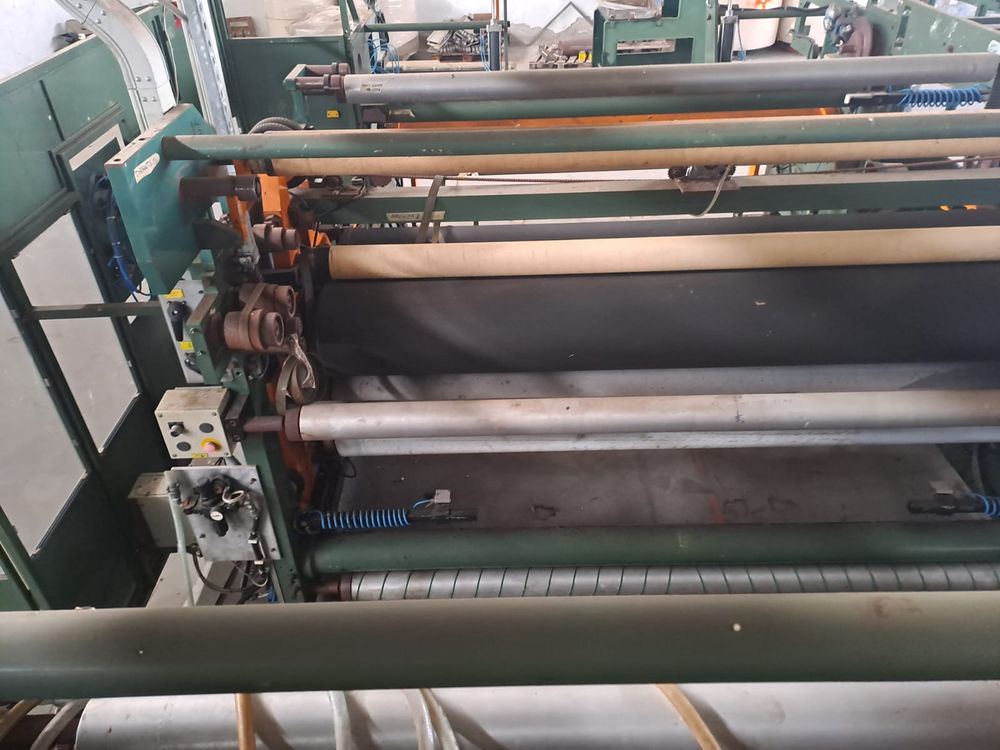

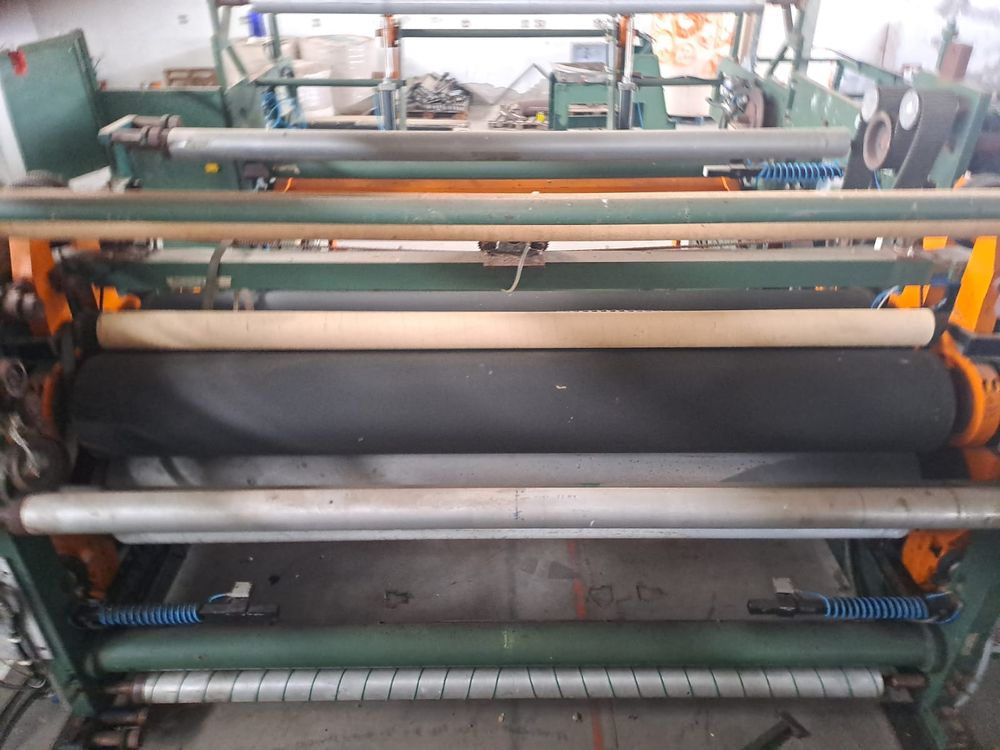

Rewinder:
Type: Automatic continuous (no stop)
Model: Delta (68.50)
Max Speed: 400 mt/min
Min log diameter: 90mm
Max Log diameter: 145mm
Perforation: yes
Perforation length: 110-150mm
Cycle with blade roller and vacuum roller

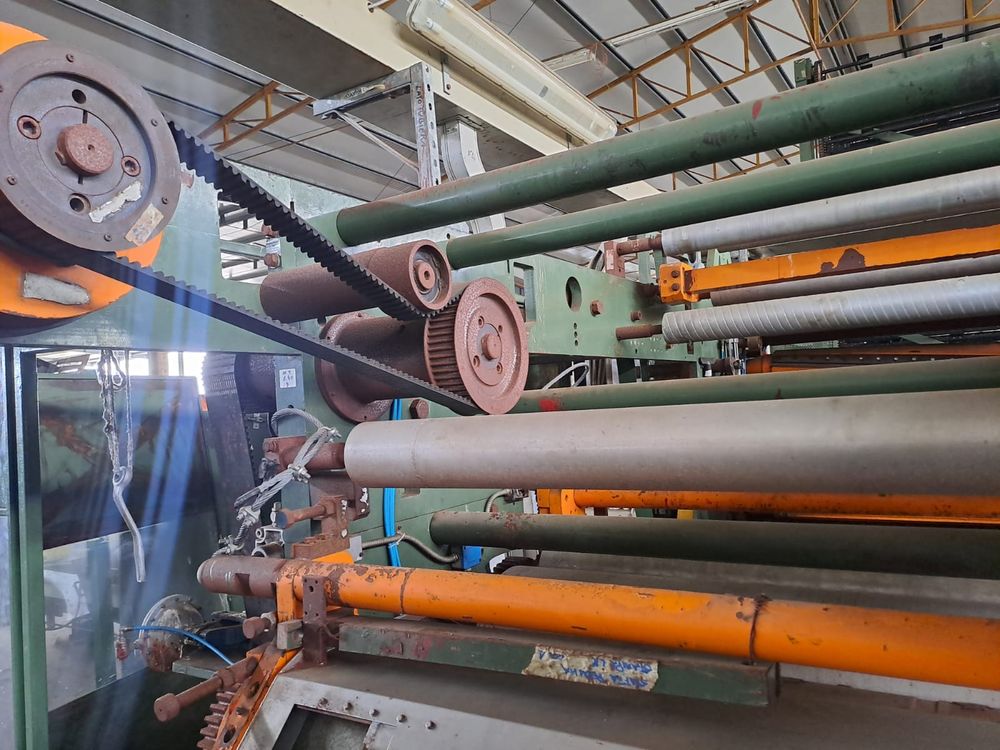

Transmission: mechanical by pulley and belt
Color: green
Tail sealer:
Type: continues
Log width: 2700mm
Minimum log diameter: 90 mm
Maximum log diameter: 145mm
Max number of cycles: 30 max
Transmission: motor
Color: Green
Log Accumulator:
Number of logs: 200
Independent motor: yes
Discharge system: 2 lanes
Color: green
Log Saw 1:
Model: 140
Type: modified to electronic
Cutting length: can be changed electronically
Use: Mainly kitchen towel
Max number of descents of the blade: 95
Color: green
Log Saw 2:
Model: 140:
Type: mechanical
Cutting length: can be changed by mechanical adjustment
Use: Mainly hygienic rolls
Max number of descents of the blade: 180
Color: green
Core Maker:
Speed: 60 mt/min
Number of stripes: 2 + 1
Reel diameter: 1200mm
Type of cutting: pneumatic
Type of glue: vynilic or hot melt
Core tank and core belt for automatic loading the core in the rewinder.
ON OPTION: end of line: : TMC TR & KTW packaging & bundler & conveyors ( see wotol ref 2756574-2-CP at link: https://www.wotol.com/product/tmc-tr-ktw-packaging-bundler-conveyors-just-stopped-july-2025-must-clear-space/2756574 )
