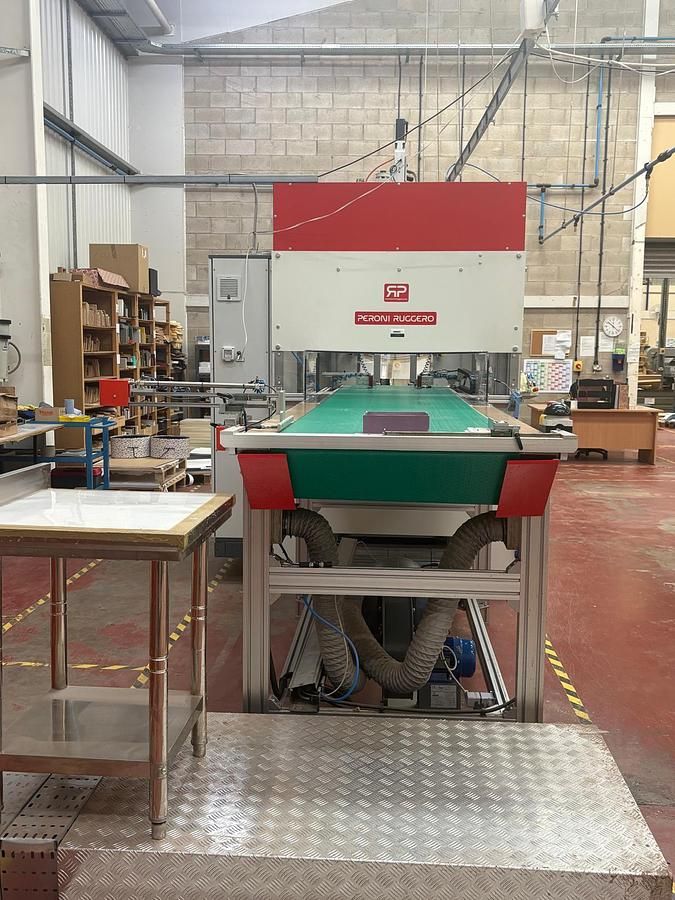

Peroni Ruggero Box Wrapper 24 500x500mm

Condition Used
Paper thickness from 110gr./m2. to 150gr./m2.
Job-size change over 15-20min.
Operator/s req. 1
Production capacity 350 Wrapped boxes p/hour
Min box size 50x50mm
Max box size 500x500mm
Min height 20mm
Max height 240mm

Semi-automatic machine to produce wrapped rigid boxes
Automatic simple line to wrap high-quality rigid boxes, composed by automatic paper feeder; Gluing unit with automatic viscometer
Manual positioning of the box onto the glued paper with mechanical centering device (motors & sensors)
Automatic centering & translation of the materials to the automatic wrapping unit by telescopic conveyor tape
Automatic wrapping unit
Pick & Place system to move the ready box to the delivery unit.
Moulds for each box size can be made from wood and easily installed/removed by a quick-release system.
The semi-automatic version can be upgraded with an automatic paper feeder, gluing unit, and box mechanical centering device (motors & sensors).

Features:
Fully modular system
Quick size change over
up to 350 wrapped products per hour
Centering Systems
