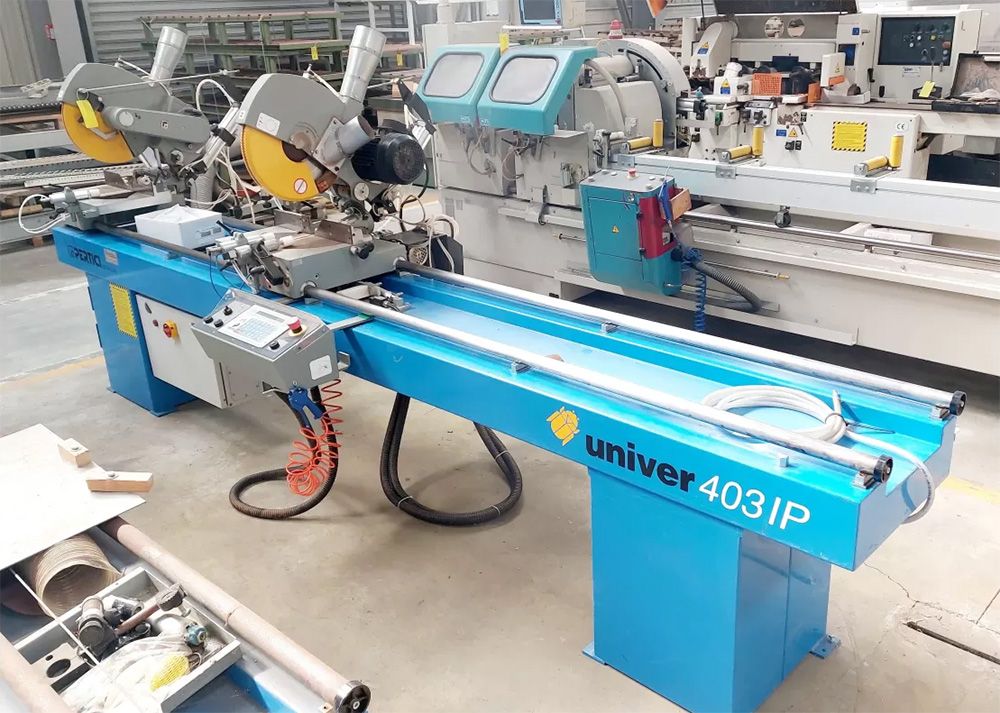

Pertici UNIVER 403IP DOUBLE CHAINSAW

Tool rotation speed 3000 rpm
Usable cutting length 3500 mm
Maximum machinable section 110 x 200 mm

INING CAPABILITIES:
- Maximum inlet section (thickness x width):
For a straight 90° cut: 110 x 200 mm
For straight cuts inclined (tilted) at 45° or 135°: 45 x 200 mm
For angled cuts at 45° or 135°: 110 x 140 mm
- Blade rotation speeds 3000 rpm
- Finished lengths according to blade positioning:
L Min-Max: 350 to 3500 mm
- 90-45° adjustable motor units
L Min-Max: 540 to 3500 mm
L Min-Max: 1050 to 3500 mm
- Tiltable/swing motor unit:
L Min-Max: 110 to 3500 mm

COMPOSITION :
- Robust welded steel frame
- Table height (working height): 96 cm
- Tables under the saw: 500 x 270 mm
- Trolley on roller-bearing slides
- Pneumatic clamping cylinders 2 horizontal & 2 vertical.
- Backlit 80-character alphanumeric LCD display, USB port
Options available on this machine:
- Rapid blade feed device towards the workpiece
- Automatic center support
- Automatic blade lubrication system

OTHER FEATURES :
- General power supply 380 V. Three-phase 50 Hz IN 14 A
- Saw motor with brake: 2 x 3 kW
- Saw blades Max Ø400 mm Bore Ø30 mm Thickness 4mm Z96
- Pneumatic supply : 8 bar, minimum operating pressure 6.5 bar
- CE marking, Lockable disconnect switch, Front/rear emergency stop buttons
Blade guards: self-retracting cover

Overall dimensions when in operation: allow 1.50m around the machine
Transport dimensions (LxWxH): 4.15 x 1.20 x 1.45m
