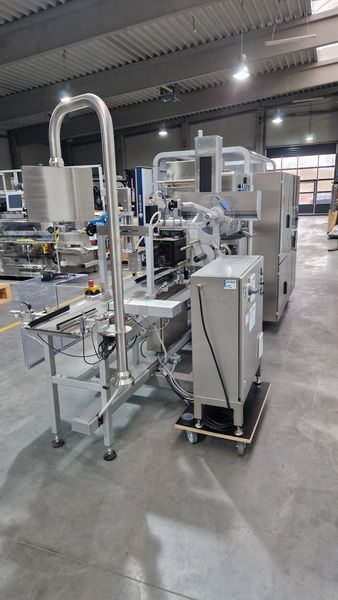

Pester PEWO-fold 2 Compact Overwrapping machine

For single and multiple containers with straight infeed
Running from left to right
For PP films
Output max. 22 containers/min.
Infeed width 100-200 mm
Infeed length 50-350 mm
Infeed height 30endash150 mm
Erecting device for 90° rotation of folding cartons
Stacking station
Automatic film change from working roll to storage roll using film splicer
Camera/track & trace system for serialisation and aggregation with PLM direct software
ZEBRA ZE500 label printer with label applicator and PCE camera
Handheld scanner
Schneider Electronics PacDrive LMC/Lexium LXM62 P/LXM 62 D control system
15.6" HMI with tangius 4.0 visualisation software
User management
Format management
Audit trail
Ethernet connection
Folding box formats used Infeed (a x b x h) 55 x 26 x 110/160/185 mm
Container dimensions used (IW x IL x IH) 110/160/185 x 130/220 x 78/55 mm, groupings 1 x 5 x 1 and 1 x 4 x 3
Connection 400V/50Hz/5.5kW/8A
