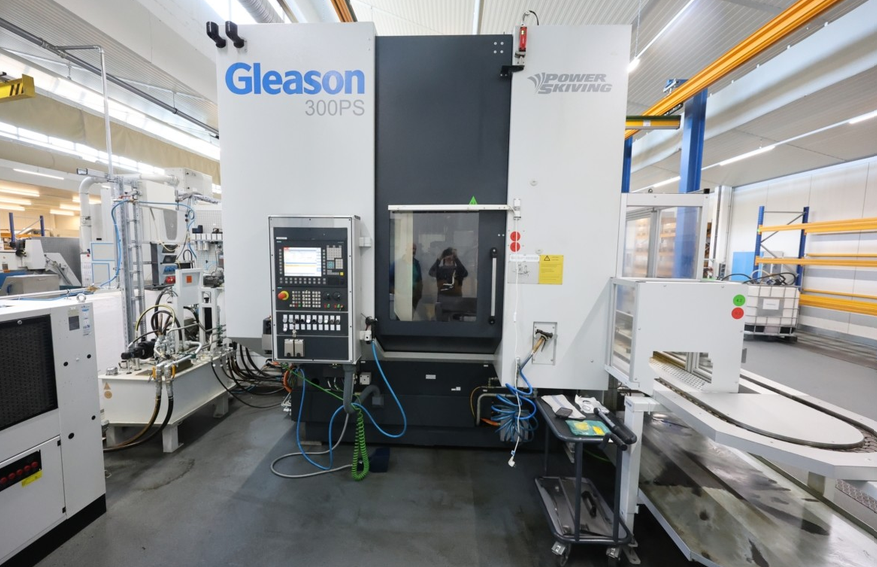

Gleason, Pfauter 300 PS 1500 rpm Hob Peeling Machine
Ref :
2810298-3-GO
Condition :
Used
Manufacturer :
Gleason, Pfauter
Model :
300 PS
Spindle Speed :
1500 rpm
Short Description :
Hob Peeling Machine
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 350 mm
Y-axis feed: 5000 mm/min
Z-axis travel: 300 mm
Z-axis travel: 440 mm
Peeling head swivel: ±25°
Control: Siemens 840 sl CNC
Maximum wheel diameter: 450 mm
Maximum module: 4 mm
Minimum internal diameter: 100 mm
Maximum internal diameter: 300 mm
Maximum peeling wheel diameter: 175 mm
Installation area diameter: 125 mm
Tool speed: 0–3000 rpm
Workpiece table speed: 0–1500 rpm
X-axis feed: 12000 mm/min
Z-axis feed: 8570 mm/min
Workpiece table outer diameter: 570 mm
Maximum workpiece table load: 5 kN
Voltage: 400 V
Weight: 11 t
Machine dimensions: 5.85 × 8.3 × 3.8 m
Swivel gripper travel: 180°
Hydraulic tank: 150 l
Coolant tank: 850 l
Engine and hydraulic cooling capacity: 100 l
Grease lubrication: 2 kg
