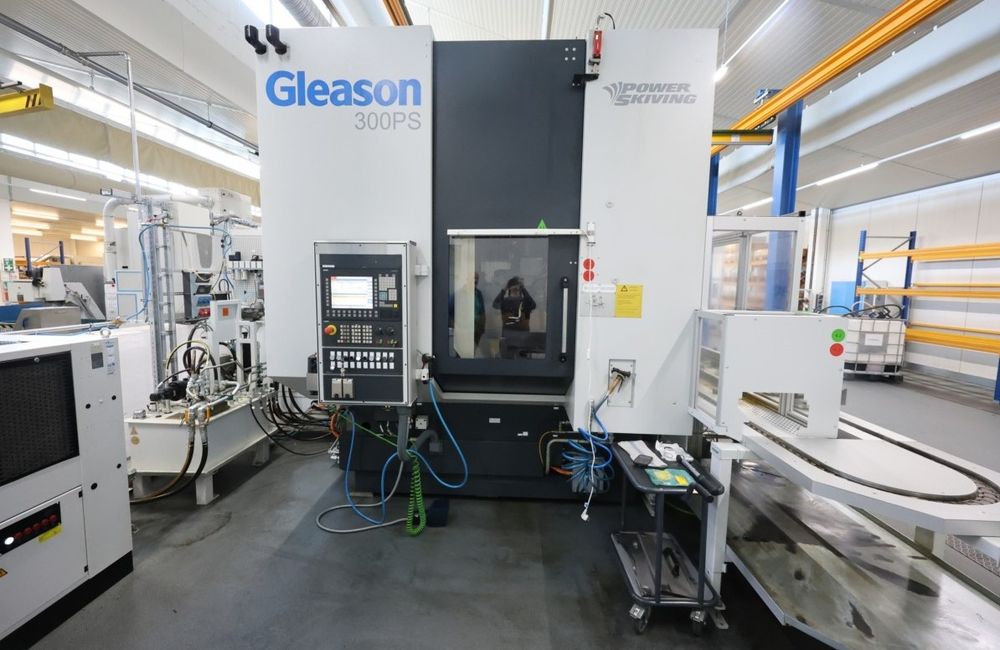

Gleason, Pfauter 300 PS Hob Peeling Machine 1,500 rpm

X-axis travel: 350 mm
Y-axis travel: 300 mm
Z-axis travel: 440 mm
Max gear diameter: 450 mm
Internal diameter range: 100–300 mm
Max cutter diameter: 175 mm
Mounting surface diameter: 125 mm
Max skiving head swivel angle: ±25°
Workpiece table outer diameter: 570 mm
Max table load capacity: 5 kN
X-axis feed rate: 12,000 mm/min
Y-axis feed rate: 5,000 mm/min
Z-axis feed rate: 8,570 mm/min
Tool speed: 0–3,000 rpm
Workpiece table speed: 0–1,500 rpm
Control: Siemens 840D sl
Operating voltage: 400 V
Hydraulic oil capacity: 150 l
Coolant capacity: 850 l
Motor and hydraulic cooling: 100 l
Machine weight: approx. 11 t
Machine dimensions: 5.85 × 8.3 × 3.8 m
