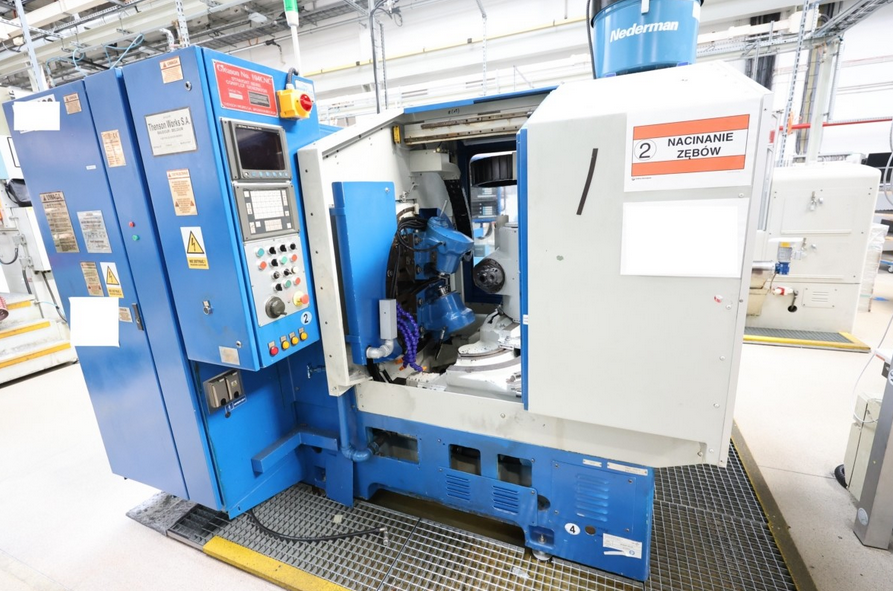

Gleason, Pfauter No. 104 CNC Cone distance min./max.: 0-108 mm Bevel Gear Generator - Straight
Ref :
2778311-3-GO
Condition :
Used
Manufacturer :
Gleason, Pfauter
Model :
No. 104 CNC
Spindle Speed :
Cone distance min./max.: 0-108 mm
Short Description :
Bevel Gear Generator - Straight
Year(s) :
1997
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Retrofit 2018
Control: GE Fanuc Series 0-GC
Pitch angle min./max.: 5°/84°
Pitch diameter (1:1 ratio): 152 mm
Pitch diameter (10:1 ratio): 216 mm
Diametral pitch (finest/coarsest): 1.3/8.5 Mod.
Max. face width gear wheel: 35 mm
Knife spindle speed range: 41-121 rpm
Working spindle speed range: 0-33.33 rpm
Machine weight: 9025 kg
Machine dimensions: 2707 x 2720 x 2200 mm
Knife
Chip conveyor
Technical documentation
