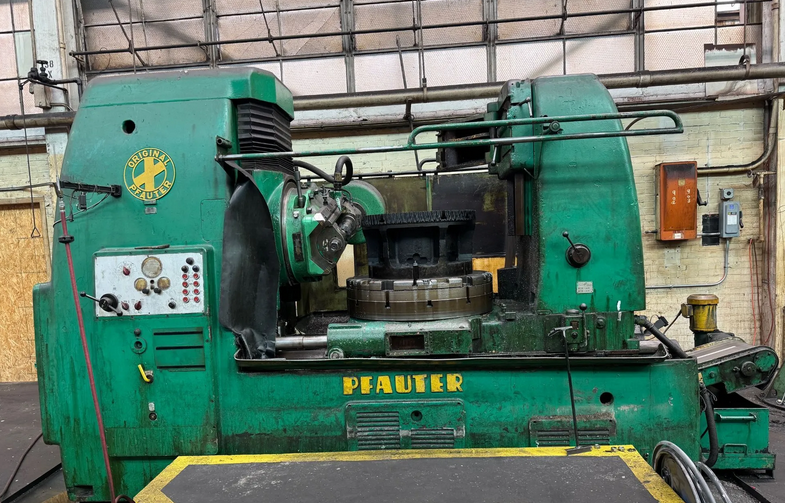

Pfauter P1250 200 RPM GEAR HOBBERS

Ref : 2761075-3-MT

Condition : Used

Manufacturer : Pfauter

Model : P1250

Spindle Speed : 200 RPM

Short Description : GEAR HOBBERS

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Maximum workpiece diameter: 1250 mm
Maximum diametral pitch: 2.0
Module: 12
Axial travel: 585 mm
Maximum hob diameter: 220 mm
Maximum tool length: 260 mm
Minimum number of milling teeth: 12
Hob arbor size: 2.0"
Hob speed: 200 RPM
Hob spindle speeds: 32–200 RPM
Table diameter: 37.4"
Axial feed range: 0.30–6 mm/min
Radial feed range: 0.09–1.8 mm/min
Tangential feed range: 0.126–2.53 mm/min
Machine weight: 14,000 kg
Control type: Conventional

Equipment
Hob arbor
Single indexing
Differential
Swing-away tailstock
Chip conveyor
Coolant
Change gears
Spare arbors
