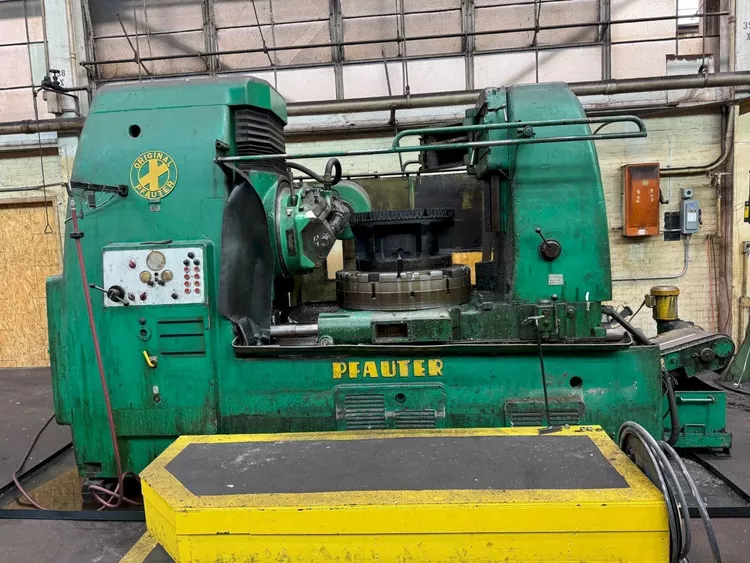

Pfauter P1250 200 RPM VERTICAL GEAR HOBBER

Ref : 2786007-3-MT

Condition : Used

Manufacturer : Pfauter

Model : P1250

Spindle Speed : 200 RPM

Short Description : VERTICAL GEAR HOBBER

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Axial Travel: 23.032"
Feed Rate Axial: 0.30 – 6 mm/min
Feed Rate Radial: 0.09 – 1.8 mm/min
Feed Rate Tangential: 0.126 – 2.53 mm/min
Control: Conventional
Coolant System
Chip Conveyor
Maximum Workpiece Diameter: 49.213"
Maximum Diametral Pitch: 2
Module: 12
Maximum Hob Diameter: 8.6614"
Hob Arbor Size: 2"
Hob Speed: 32 – 200 RPM
Table Diameter: 37.402"
Minimum Milling Teeth: 12
40" Table
Hob Arbor
Differential
Change Gears
Risers
Swing Away Tailstock
Electrical: 440V / 3 Phase / 60 Hz
Machine Weight: 14,000 kg
