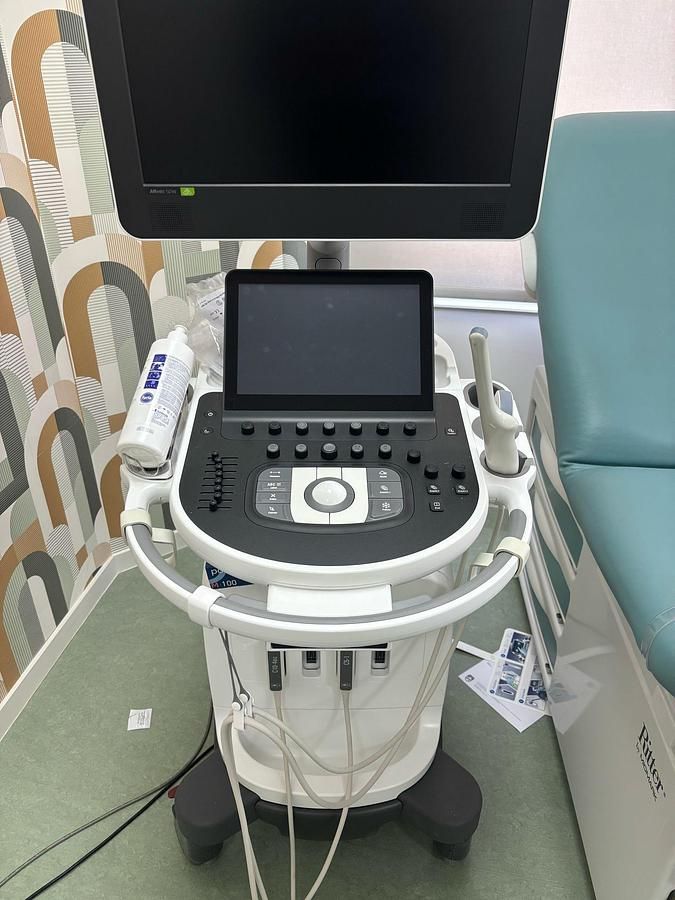

Philips Affinity A50

With 2 probes:
• Endovaginal probe C10-4ec
• Convex probe C5-1

Affiniti offers a remarkable level of clinical performance to meet the expectations of
the most demanding practitioners in ultrasound • New “tablet” type
interface revolutionizing interaction with the system and resulting in a
reduction in examination time and the number of steps to
be carried out per examination.
• Large 21.5-inch, high-resolution LED display for easy viewing in any environment
• Wide range of height and orientation adjustments for the control panel and
tilt/rotate monitor to allow the operator to adopt an ergonomic working position,
whether seated or standing (180 degrees of rotation from center)
• Low operating noise (37-41 dB) — equivalent to a library soundstage
• Easy mobility with battery backup options
• 4 probe ports • Integrated footrest
• Integrated drawer and storage shelves
• 4 swivel casters with foot brake and swivel lock
• Up to 4,718,592 digital channels
• Exclusive adaptive signal-to-noise ratio functionality allows the system to
achieve a dynamic range of 280 dB for enhanced 2D imaging
• Powerful distributed multi-core processing architecture capable of
running 225 x 109 multiplication-accumulation/second (40-bit).
Includes a 512 GB hard drive
• Embedded Windows 10 standard operating system
• Philips SonoCT latest generation real-time composite imaging,
generated from information collected on 9 firing lines, and Widescreen function,
allowing to acquire more tissue information and reduce artifacts generated by
incidence angles • Philips XRES latest generation adaptive image processing,
reducing noise and artifacts to improve the definition of tissue walls and interfaces
• Independent multi-mode Triplex operation
• Active native data for post-processing of freeze-frame and Cineloop image data
• High Q automatic Doppler analysis in vascular imaging tracks the
Doppler signal in real time, automatically selects the maximum velocity peak and,
at the touch of a button, adds the measurements to your report.
• Integrated wireless DICOM connectivity with WPA2 security protocol
(not included in the base model).

Probes Advanced compact connector technology featuring a pinless design
for exceptional reliability and performance
• Ergonomic design and lightweight flexible cables
• New low-loss technology for better penetration with fewer artifacts
• Very wide transmit frequency range and new transducer element array configurations
• Supports virtually all probe types up to 20 MHz: sectorial, linear, convex,
microconvex and mechanical volume Automation Particularly innovative tools to
optimize efficiency
• Autoscan function (real-time iSCAN) ensures continuous and
automatic optimization of the overall gain and the depth-dependent gain (TGC gain) to
ensure optimal image quality in 2D, 3D and 4D modes.
• High Q automatic Doppler analysis in vascular imaging allows you to
monitor the Doppler signal in real time, automatically selects the
maximum velocity peak and, at the touch of a button,
adds the measurements made to your report.
• Intelligent Tissue Specific Imaging Software
• Application-specific preset annotations and user-defined

Quicktext automatic annotations
• QuickSave user presets (up to 45 per transducer) Data
• Workstation-style data management functions integrated into the ultrasound system.
Thumbnail preview, image saving, image sequence saving and report saving
• Image saving to internal hard drive or removable disk with acquisition mode setting:
“retrospective” or “prospective”
• Ability to send multiplanar reconstructions of X, Y and Z plane volumes to
most PACS systems
• Ability to export native QLAB data Other basic features
• OB clinical option
• GYN clinical option
• Battery backup (not included in the base model)
• Energy Doppler
• Tissue harmonic imaging and pulse inversion harmonic imaging
• 2D, TM, Anatomical TM, Color Doppler, Pulsed Doppler, High PRF Doppler,
Continuous Wave Doppler, Chroma Imaging, Tissue Doppler,
Pulse Inversion Imaging, Cineloop image sequence playback in 2D,
TM and Doppler modes
• Zoom in and zoom out high definition reading with panoramic functions
• Chroma imaging • Measurement tools to calculate: distances, depth,
areas and perimeters
• Blood flow/volume measurements Articulating arm Liquid crystal display mounted on
a fully articulating and extendable arm that allows its orientation in
all directions of space. Battery backup power supply
• C5-1 PureWave probe For Affiniti G and W: Convex probe,with PureWave Crystal
Technology and an extended transmission frequency range of 1 to 5 MHz.
The C5-1 convex transducer with PureWave Crystal Technology enables high
performance imaging in abdominal, gynecological, obstetrical, and
interventional ultrasound applications.
Now, a single transducer gives you exceptional clinical performance in
all patient types, including obese, low-echoic, or technically difficult-to
-examine patients.
For Affiniti C: Convex transducer, with PureWave Crystal Technology and
an extended transmission frequency range of 1 to 5 MHz.
The C5-1 convex transducer with PureWave Crystal Technology offers high
performance for vascular and fetal heart applications.
Now, a single transducer gives you exceptional clinical performance in
all patient types, including obese, low-echoic, or technically difficult-to-examine patients.
• C10-4ec Probe Convex probe with extended transmit frequency range of 10-4 MHz,
beam projection at the probe tip, 8 mm radius of curvature and 150 degree field of
view. Suitable for endocavitary applications, including endovaginal
(early OB and OB Fetal Heart only) and endorectal (prostate).
Not suitable for GYN applications.
