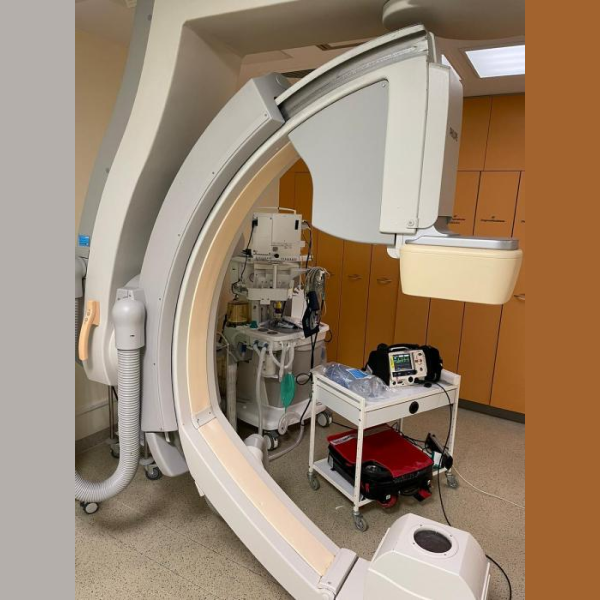

Philips Allura FD10

The Philips Allura Xper FD10 Cath Lab system is a highly advanced fluoroscopy system
designed for cardiac and cardiovascular procedures.
Here are some key specifications and features
1. Imaging Technology
Flat Detector: The FD10 flat detector with a 14 x 17 cm field of view delivers
high-resolution images, supporting detailed visualization during procedures.
3D-RA (Rotational Angiography): Generates high-resolution 3D images from
a single rotation angiography run, enhancing anatomical visualization and
spatial relationships of vessels.

2. System Component
Ceiling-Suspended Gantry: Allows versatile automatic positioning movements for
ease of use
High Output X-Ray Tube: The MRC-GS 0508 X-Ray tube paired with a 100 kW
high-frequency X-ray generator ensures exceptional image quality
AngioDiagnost Table: Available in versions 5 or 7, supporting a weight limit up to 225kg
(495lbs)

3. Workflow Integration
Xper Multi-Modality Integration: Combines advanced image acquisition,
hemodynamic monitoring, and integrated reporting to
streamline workflow and data management.
Xper Geometry and Imaging Module: Provides table-side controls for
easy adjustments during procedures.

4. Advanced Visualization Tools
StentBoost: Enhances stent visualization in coronary arteries, allowing clear visualization
of the stent in relation to the vessel wall
Xres Technology: Increases image contrast while reducing noise, applicable to
both cardiac and vascular fluoroscopy.

5. Dose Management
Xper Personalized Settings: Allows customization of system functions to
match user workflow, enhancing efficiency and reducing manual tasks.
