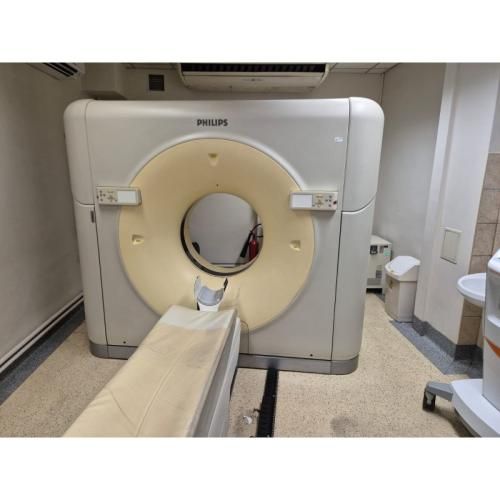

Philips Brilliance CT 16-slice Scanner

Tube YOM: 2022
Scan Seconds: 587 149

Features
16-channel multi-slice imaging system with fast acquisition and high resolution
Integrated DoseWise technology for intelligent dose modulation
(ACS, D-DOM, Z-DOM)
Intuitive Brilliance Workspace console with options
(MPR, MIP, 3D, volume rendering)
Ultra-fast image reconstruction with RapidView up to
20 frames per second (optional)
Adaptive reconstructions and COBRA for accurate 3D rendering in spiral mode
Multilingual AutoVoice interface to guide the patient before,
during and after the examination
Full support for DICOM 3.0 protocols with integration into IHE workflows
Compatible with a wide range of clinical applications: virtual colonoscopy,
cardiac angio-CT, cerebral perfusion, endoscopic CT
Specific features for cardiac imaging: ECG gating, Heartbeat-CS, CV Toolkit
Extensive work platforms and remote access with Brilliance Workspace Portal

Technical Details
X-ray tube: 5.0 MHU / 48 kW or 8.0 MHU / 60 kW
Voltage range: 90, 120, 140 kVp
Tube current: 20 to 500 mA (in 1 mA steps)
Rotation speed: 0.4 to 2 seconds (360°) / 0.28 to 0.33 seconds (partial 240°)
Gantry opening diameter: 700 mm
Focus-detector distance: 1040 mm
Focus-isocentre distance: 570 mm
Vertical range of the patient table: 578 to 1028 mm (1 mm increments)
Manual longitudinal travel: 1900 mm
Scannable range: 1750 mm
Z positioning accuracy: ± 0.25 mm
Longitudinal speed: 0.5 to 100 mm/s
Max. table load capacity: 204 kg (standard) / 295 kg (with bariatric support)
Spatial resolution: up to 24 lp/cm (ultra-high resolution mode)
Contrast resolution: 4 mm at 0.3% at 120 kVp, 250 mAs
Slice thickness (spiral): 0.65 to 7.5 mm
Slice thickness (axial): 0.6 to 12 mm
Field of view (FOV): 250 mm and 500 mm
Gantry dimensions (W x D x H): 239 cm x 94 cm x 203 cm
Gantry weight: 1896 kg

Compatible Accessories
Bariatric support (reinforced table with a load capacity of up to 295 kg)
CT fluoroscopy package (near real-time guidance up to 8 images/s,
with foot pedal and remote monitor)
Continuous CT (CCT) for interventional procedures with
axial exposure limited to 240°
Pulmonary Toolkit Oncology kit with retrospective spiral acquisition (4D CT)
for tumour monitoring and respiratory cycle visualisation
Paediatric/infant cradle (secure positioning for young patients)
Dedicated interventional table with specific controls
