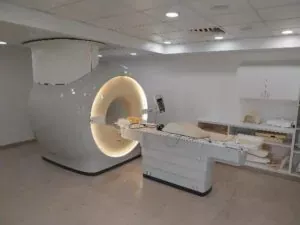

Philips Ingenia 1.5T MRI

Manufacturer and model: Philips Ingenia 1.5T MRI
System model no.: Ingenia 781396
System YOM: 2013
Gradient type: C781
Number of Channels: 16+

MAGNET INFORMATION
Magnet YOM: 2013 Jan
Magnet model no.: 58000-515
Magnet pressure: 30.1 hpa
Shield temperature:

COOLING SYSTEM INFORMATION
Coldhead Label:
Compressor model no.: F50 Hw
Compressor YOM: 10/2012
Compressor running hours: 1062698
Compressor pressure level: 2.1
Last absorber replacement: Unknown
Cold-head model no.: RDK-408C3
Cold-head YOM: 2013 Sept
Last cold-head replacement: Unknown

PATIENT TABLE INFORMATION
Extra Patient Transport:
Table. model no.: 989603019293
Table YOM: 2014
Extra trolley available? Yes – 2013 YOM
Positioning pads incl.? Some

CONSOLE AND WORKSTATION(S) INFORMATION
Console model no.: Host HP440 459800908842
Console software version: 5.6.1.3
Console software options: See Pictures at end of document:
ACCESSORIES, MANUAL HARD-COPIES AND SOFTWARE DISCS
Software and manuals (list): Latest software available 5.6.1.
No service Packs

MAINTENANCE
Any major part replacements? Unknown
Is system logbook present? Yes

COMMENTS
Functional condition: 1.: Working and no issues noticed or reported.
2.: All coils present passed IQT.
Cosmetic condition: Good

COILS
Coil name & channels: Model no.: Serial no.: Test result
FC Anterior Coil 1.5T, 451001007239
dS Knee 16ch 1.5T, 453530252673
dS Breast 16ch 1.5T, 453530280726
dS Flex M, 30322321
dS Flex M, 22323
dStream Interface1.5T, 989603018948
Head Coil (used with ds base coil), 459800097954
Head/Neck coil (used with ds Base coil), 459800097961
ds Base Unit, 459800097944
Posterior Coil integrated into patient table, 452213277805

PHANTOMS
Model name: Amount: Model no.:
Bottle 5L, 452213096105
Bottle 3L, 452213081925
Bottle 2L, 452213228182
Bottle 1L, 452213081915
Bottle 250cc, 452213081905
Breast coil phantom 16ch: 1: 453530223112
Anterior & Posterior Phantom holder Plus 16 Bottles
200mm
400mm
Knee coil Phantom:

QA TESTING
