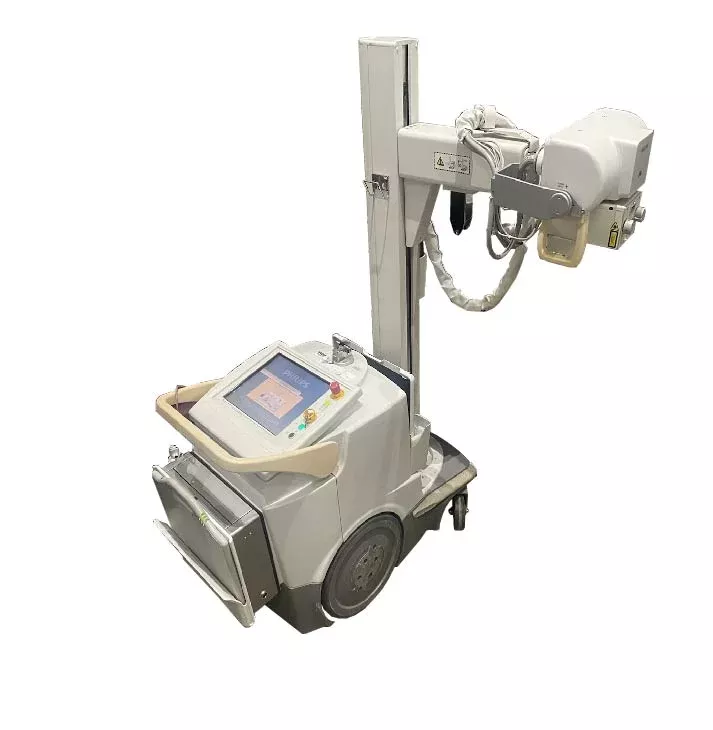

Philips MobileDiagnost wDR Mobile X-Ray Unit

The Philips MobileDiagnost wDR X-Ray offers flexible access to
hospital areas, ensuring seamless exams with quick diagnoses.
Its robust and wireless design suits busy medical facilities,
and the 40kW x-ray generator provides faster exposure times
for critical patients, maintaining lower radiation doses with
digital radiography.

Specifications
Dimensions: Approximately 54.3 x 26.4 x 78 inches (long column),
54.3 x 26.4 x 72.8 inches (short column)
Wheel Base Length: 24.1 inches
Focal Point Distance (from floor): 21.7 to 79.5 inches
(standard column), 21.7 to 74.4 inches (short column)
Focal Point Distance (to column): 49.2 inches max., 27.5 inches min.
Tube Column Rotation: +/- 315 degrees
Charge Power: 230, 220, 110, 100 VAC, 50/60 Hz
Generator and Tube Power: 20 kW (standard),
40 kW (high performance)
Tube mA Range: 10 to 320 mA (standard),
10 to 500 mA (high performance)
Generator and Tube mAs Range: 0.1 to 500 mAs
Exposure Times: 0.001 to 1.25 seconds,
0.001 to 4 seconds with free cassette
Focal Spot: 0.3/1.0 (standard), 0.7/1.3 (high performance
Detector Size: 10 x 12 inches (small), 14 x 17 inches (large)
Detector Weight: 3.5 lb (small), 6.2 lb (large)
Active Area: 8.7 x 11.2 inches (small), 13.6 x 16.6 inches (large)
Image Matrix Size: 1500 x 1920 pixels (small),
2330 x 2846 pixels (large)
Maximum Patient Weight: 298 lb for distributed load
Image Storage Capacity: 4,000 images

Features
17-inch touch-screen monitor
Digital Cesium Iodide SkyPlate Portable Detector
Suited for tight spaces and flexible access to all areas
Fast diagnoses and excellent image quality
7 patient types setup
Fast procedures
High chest image contrast
