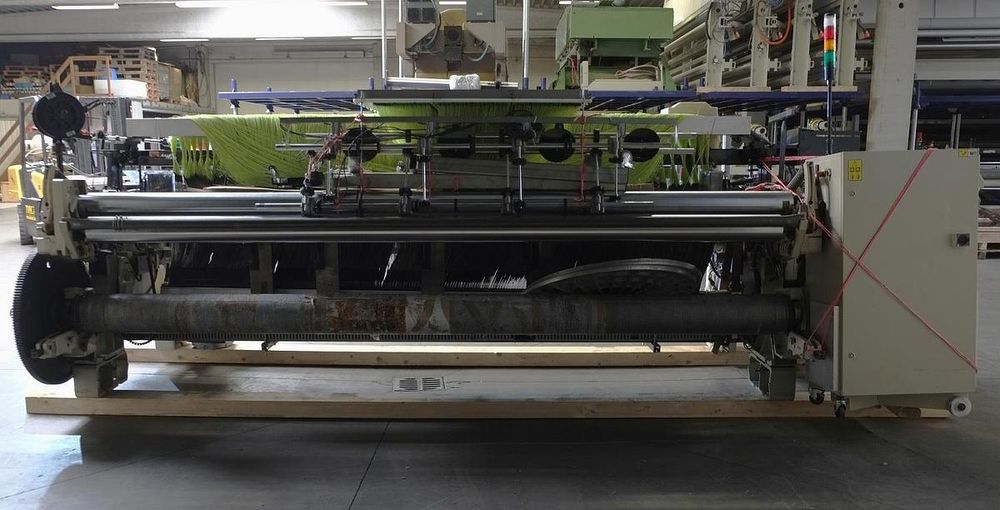

Picanol OmniPlus800-F-4-P 340 Cm Staubli Jacquard LXL 6144
EUROPE (Western and Northern)
working width 3400mm
4 colours
with jacquard STAUBLI LXL year 06/2019
format 6144, 736 modules (32 x 23 rows) installed.
Equipped with :
SUMO, 2 x ELO, ETU, PRA, 4 weft colours
4 weft feeders Picanol type 1131 CANPLUS with PFL and balloon breaker
feeder stand, bobbin creel with end bobbin detection
double warp tension rolls Ø 140mm with springs RHS + LHS
double pressure roll, Leno RHS + LHS, warp beam position 13
warp detection GROB with 6 detection bars, droppers as on loom
melt cutters RHS+LHS, touchscreen, walking step, waste-system
foreseen for split beams but without split beams, without mid support split beams
without 2ndgearwheel, full warp beam with flanges 1000mm Q3
foreseen for external batching motion but without external batching motion
cardan axe, controller Staubli JC7 (year of construction 2019)
736 modules MX, harness Staubli year 2019, single gantry with aluminium stair and safety railing.
