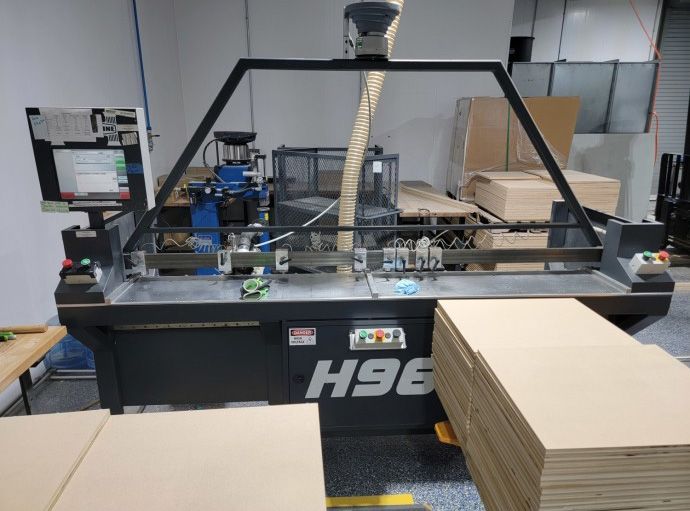

Pillar H96

Used Horizontal Bore and Dowel Machine
Horizontal bore and dowel 96′′ wide worktable of 1/2′′ thick machined aluminum to ensure a true
and reliable reference point 1 HP 18,000 RPM single spindle drill
Cycle time of approx. 1-1/2 seconds for each bore glue and dowel insertion when the holes are spaced at 64 mm intervals (4) quick adjust vertical clamps
Adjustable back fence 1/2′′ min. material thickness
Glue inserter with water or glue capability “Direct Reject System” dowel inserter 8 mm dia. vibratory dowel bowl
PC operator interface with touchscreen 2 work zones allowing for pendulum processing
The H-96’s operator interface has been designed to allow for quick programming at the machine YEAR 2018
Electricals:208-230 Volt 3 phase.
