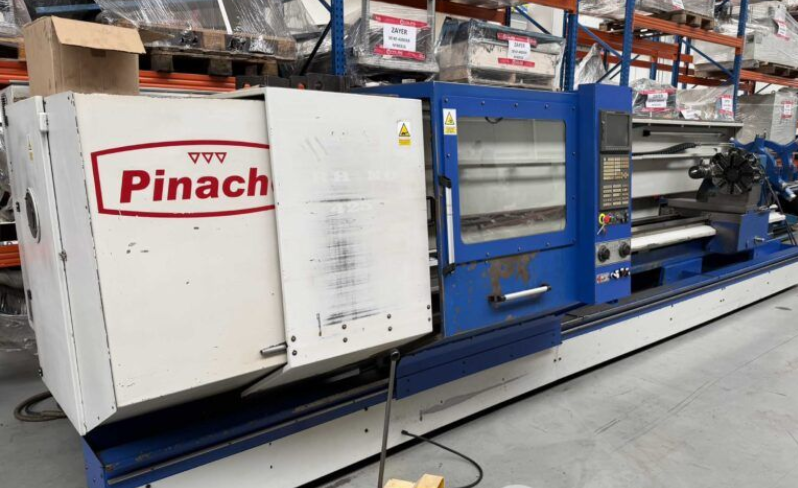

Pinacho GE Fanuc Series 21i-T CNC Control 2,000 rpm RHINO SK-425 2 Axis

Rapid Traverse X/Z: 10,000 mm/min
Working Feed X/Z: 7,000 mm/min
GE Fanuc Series 21i-T CNC Control
Swing Over Bed: 850 mm
Swing Over Cross Slide: 560 mm
Distance Between Centers: 5,000 mm
Center Height: 425 mm
Bed Width: 425 mm
Spindle Speed: 0–2,000 rpm
Spindle Motor: 11 kW
Spindle Bore: 85 mm
Spindle Nose: DIN 55027 No. 8
Spindle Taper: 5
Automatic Gear Ranges: 2
Hydraulic Tailstock Quill
Tailstock Quill Diameter: 96 mm
Tailstock Quill Travel: 215 mm
Tailstock Taper: Morse 6
Hydraulic 3-Jaw Chuck: 300 mm
Automatic Turret
Turret Positions: 8
4-Point Steady Rest: 450 mm
3-Point Steady Rest: 250 mm
Chuck Guard
Rear Protection
Dual Handwheel for Carriage Control
Foot Pedals for Hydraulic Chuck Operation
Machine Dimensions: 7,300 × 1,700 × 1,900 mm
Machine Weight: 7,000 kg
