Pines #2

Maximum bend radius: 12 in
Maximum bend angle: 180 degrees
Maximum tube length over mandrel: 7 ft 5 in
Bend arm speed: 6 rpm
Operating pressure: 2,000 psi
Control: Dial-A-Bend-SC
Counterclockwise rotation
Round tubing capacity non-ferrous: 3 in x 0.188 in wall
Round tubing capacity mild steel: 3 in x 0.109 in wall
Schedule 80 pipe capacity: 2 in
Rectangular tubing capacity mild steel: 1.5 in x 3 in x 0.148 in wall
Motor power: 10 hp

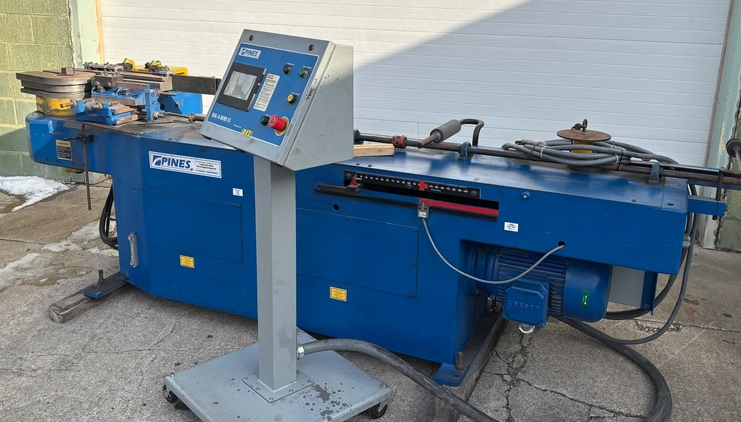

Horizontal hydraulic tube bender
