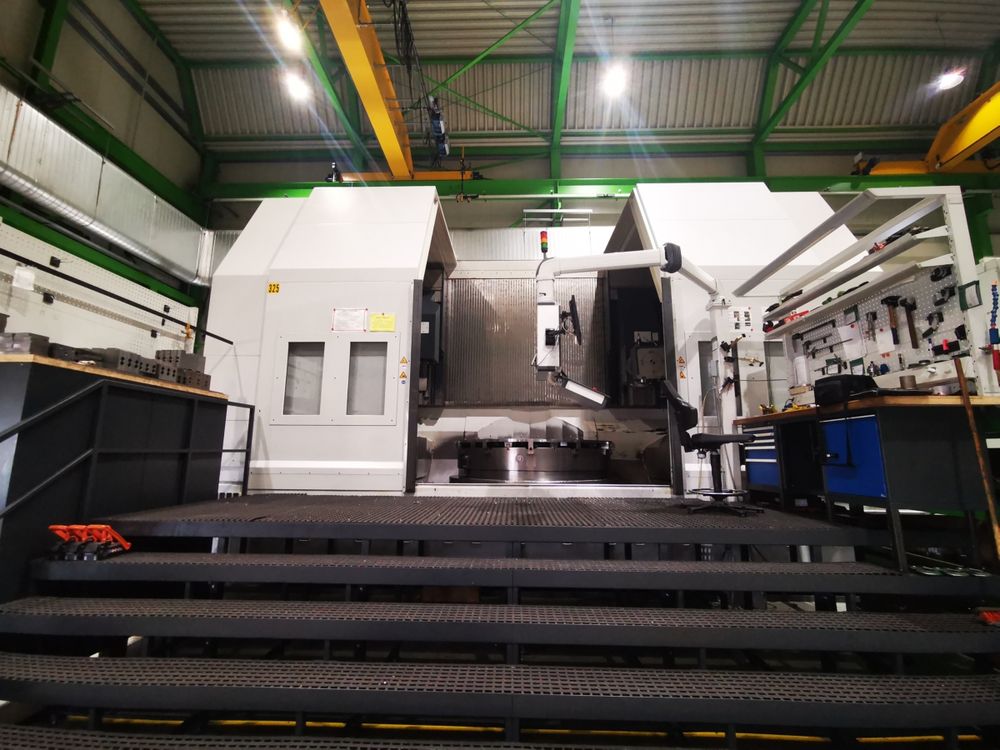

Pittler PV 2500 / 1-2 Swing Diameter 3000 mm

X Travel 2 × 2700 mm
Z Travel 2 × 1000 mm
Rapid Traverse X Axis 40 m/min
Rapid Traverse Z Axis 24 m/min
Control Siemens 840 D sl
Faceplate Diameter 2500 mm
Turning Diameter 2800 mm
Turning Height 750 mm
Spindle Speed 230 rpm
Spindle Torque 53000 Nm at 40% duty cycle
Spindle Drive Power 206 kW at 100% duty cycle
Load Capacity 25000 kg
Tool Holder Capto C8
Tool Speed up to 6000 rpm
Tool Torque 120 Nm at 100% duty cycle
Coolant Supply Direct to Tool Holders
Swivel Axis Double Tool Holder
25-Station Tool Magazine (left)
41-Station Tool Magazine (right)
Max Tool Diameter 150 mm
Max Tool Weight 20 kg
Max Tool Length 400 mm
Tool Cleaning with Air
Chip Conveyor
Coolant System 6 bar 80 l/min
Knoll Paper Belt Filter
High-Pressure Coolant Pump 70 bar
