PKB UPO

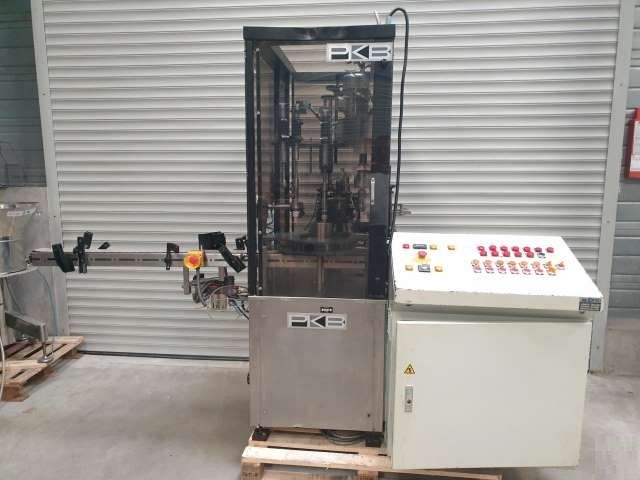

Rotary filling and screwing machine for vials
Weight : 900 kg
Dimensions : (L x W x H) 3.50 x 1.50 x 2.10 M

Automatic screw filler for glass or plastic bottles,
for liquid, semi-liquid and foaming products.

Equipped:
- Bottle feed conveyor with plastic pallets width 87 mm - length 3000 mm
- Star with 16 pockets for transferring bottles to the packaging station.
- Product filling station using 2 stainless steel nozzles with drop cut.
- Dosing station produced by 2 volumetric stainless steel pistons, adjustable with valve.
- Automatic cap removal station.
- ADMV vibrating bowl type: 110
- Counter-clockwise operation with exit ramp.
- Motorized belt conveyor to bring the caps under the placement station on the bottle.
- Screwing station with disengageable head.
- General training with electronic variation.
- Control and power box.
- Electrical update with automaton and Omron touch screen, supplement of €8,000.
- Safety guards

Current equipment:
- Round bottle: diameter 40 mm
- Cap: diameter 22 mm
- 2 stainless steel filling nozzles: diameter 5 mm
- 2 volumetric stainless steel pistons for product: from 2 to 20 ml.

Capacity:
- Bottle from 10 to 500 ml
- Minimum diameter 15 mm - maximum 90 mm
- Minimum height 30 mm - maximum 250 mm

Maximum hourly production of approximately 3500 bottles by adding nozzles and pistons.

Motor power: 1.5 kW
Maximum pneumatic pressure: 6 bar
