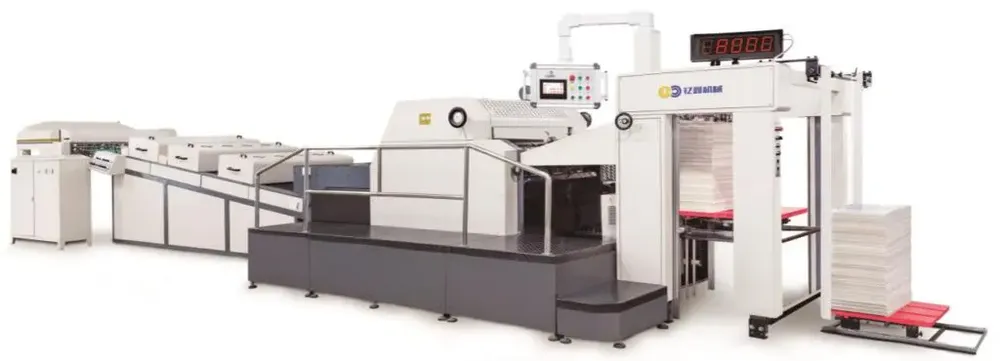

Platinum UST-105GW Fully Automatic UV Coating Machine

Feeder:
Automatic paper feeder with pile elevation and safety sensors
Non-stop feeding system
Sheet separating head with 4 sheet suction suckers and 2 suckers for move forward sheets.
Transport table with air suction and belts
Double sheet detector
Side lay system.

Printing Unit:
Printing unit constructed with thick cast iron walls.
Machined at high precision with a proven design for stable printing and high speed.
Pneumatic actuators for pressure of cylinders and anilox roller
Adjustable pressure mechanism between plate cylinder and impression cylinder and between anilox roll and plate cylinder.
Clamping system with angle adjustment for plate or blanket mounting.
Mechanical transmission of printing unit with automatic lubrication, pneumatic actuated clutch.
Coating system with anilox roller with close chamber system for internal feeding or vanish and two sets of cleaning knives.
Pump and circulation system of vanish with a diaphragm pneumatic pump.

Transport Sheet Module and Dryer:
Extended delivery with transport belt with air suction to hold down the carton sheets and deliver them to drying section.
It guarantees a very good flow out for a lay down and crystal clear curing of the UV vanish producing a very high gloss.
Inferior gate mechanism to bring samples sheets of the transport belt before the delivery, to exam the quality of printing.
This prevents disruption of the pile in delivery section.
Infra-red drying system with two modules of 12 IR lamps(of 1 kw each) and each module (total 24kw) used to dry water base coating of blister or primer.
Reflector for each IR lamps, protection covers of IR dryer, with safety sensors and pneumatic actuated elevation of the dry hood.
UV drying system with 2 lamps of 15kw (Stepless power control)
Protection covers for the UV drying unit with high reflectance and iron wire protection of lamps.
The covers have a pneumatic actuated elevator with safety sensors.
Air cooling and extraction of the lamps
Air turbines to extract zone and heat from drying section.
Parabolic reflectors of the UV lamps
Power cabinet with safety lock on power doors.
Protection system for excess temperature and cooling system for sheets on the delivery
Control console with a PLC system

Automatic Sheet Pile Delivery System:
Sheet delivery system with automatic pile delivery
Air brake system for sheets on the delivery.
Side stops and lateral stops adjustable to the size of the sheet, with jogging mechanism
Automatic control of the pile level in the delivery.
Sheet gate to take samples sheets from transport belt and to act as a reservoir during the pile change at the delivery

Specifications:
Maximum Sheet Size: 1060 x 750 mm (41.73” x 29.52′′),
Minimum Sheet Size: 406 x 340 mm (15.98” x 13.38”),
Maximum Printing Size: 1050 x 740 mm (41.33” x 29.13′′),
Sheet Thickness: 100-600g/m2,
Max Running Speed: 8,000pcs//h (depending on material & size),
UV Lamp Power: 2x15kw (Stepless Adjustment),
IR Lamp Power: 24pcs x 1kw,
Total Power: 55kw (380V 50Hz),
Weight: 13,600 kg (29,983 lbs.),
Overall Size: 13459 x 3345 x 2000 mm (44.15’ x 10.97’ x 6.56’),
Electrical Requirement: 480V 60Hz, 3Ph
