Pluridrive 650 x 2100

Manufacturer: C2
Condition: used, completely overhauled; with warranty

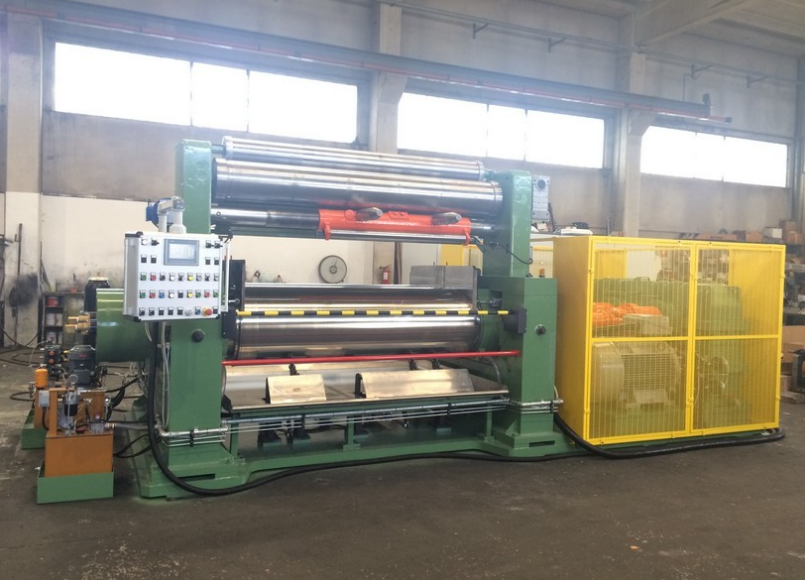

Specification: Rolling mill Pluridrive 650 x 2100 mm
model external gearbox – motor
located on the side of the machine
- Roll diameter: 650 mm
- Roll length: 2100 mm
- Peripherally drilled rolls for water cooling
- 2 new AC motors: Power 2x 132 kW - 400V, 50 Hz
- Cardan joints between gearbox and rolls
- New drive gearbox
- hydraulic Gap adjustment: new
- Hydraulic unit: new
- Tilting guide plates
- Rollers mounted on bronze bearing bushings with corresponding lubrication system
- NEW hydraulic unit with DropSa distributors for lubricating the bronze bushings
- Rollers with new ball slewing rings, manufactured by Johnson-Fluiten,
for connection to the water circuit
- 2x NEW safety brakes on each drive motor for emergency stop
- Stainless steel roller hopper for collecting the mixture
- Bi-directional belly bar for the safety system
- New control panel
- 7" Siemens touch panel, model KTP700 Basic, for monitoring machine parameters
- New control cabinet with PLC system, Siemens S7-1200
- 2x new Siemens frequency converters, model G120, for variable roller speed per roller
- Machine wiring: new
- Power cable approx. 5m from control cabinet to machine
- Emergency system and corresponding recovery
- Paintwork according to customer specifications
- Safety devices according to current standard EN 1417:2023
- EC certificate and operating and maintenance instructions
(CE manual in English or German)
- electrical and hydraulic circuit diagram
- with 12-month warranty
- space requirement approx.: 6,000 x 3,000 mm (see sketch)

Additional options available at extra cost:
- Overhauled stock blender mounted on the machine for
homogenizing rubber compounds
- two new, adjustable pneumatic strip cutting knives for a rubber strip
