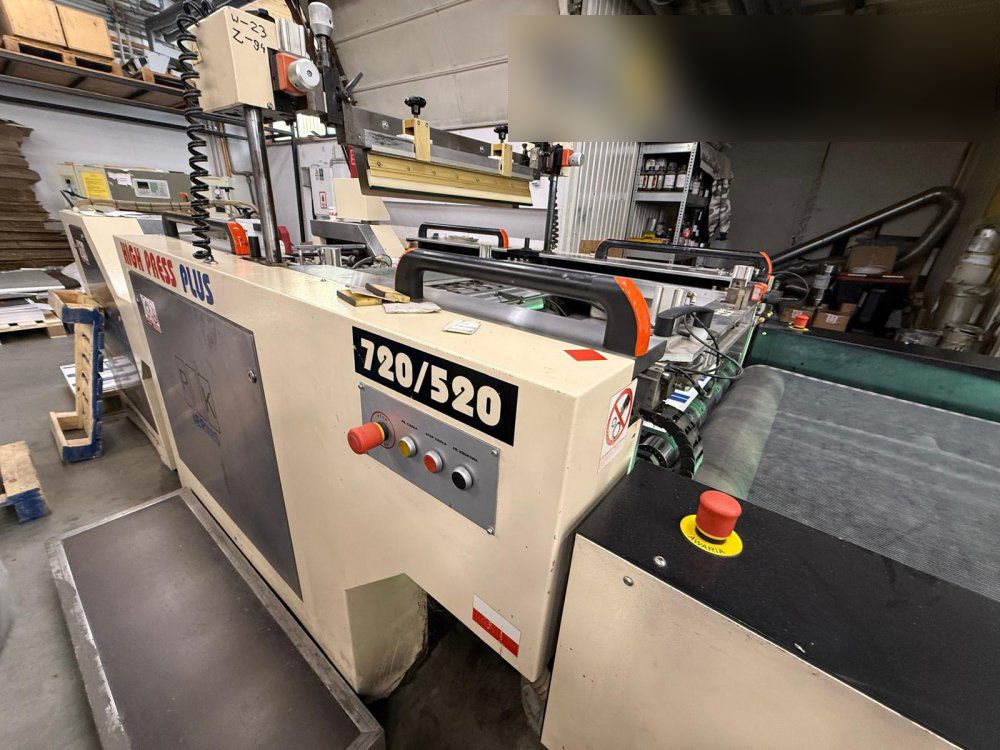

PLUS 720/520 with UV 800 Cylinder Screen Printing Machine with Tunnel

HIGH PRESS PLUS 720/520 - Cylinder Screen Printing Machine with Tunnel UV 800
Automatic Screen Printing Machine High Press PLUS is a fully automatic cylindrical
type alloy cylinder screen printing machine with sheet feeding in a single configuration and streaming.

Technical data High Press PLUS 720:
Maximum sheet size 740 x 520 mm
Minimum sheet size 350 x 270 mm
Maximum print area 740 x 500 mm
Substrate thickness 0.075-0.8 mm
Margin on cylinder feet 10 mm
Power supply 400V 50Hz
Print speed 800-3000 ark./h
Operating pressure 6 bar
Overcurrent protection 32A Type C
Maximum power consumption 8 kW

Dimensions:
Length 3100 mm x Width (with platforms) 2400 mm x Height 1500 mm
Weight 3600 kg

Technical data of EPS Compact System 800 UV tunnel:
Maximum sheet size 780 x 600 mm
Maximum stack height 800 mm
Maximum speed of the transporter 45 m / min
Power supply 400V 50Hz
Operating pressure 6 bar
Air demand 4 m3 / h
5-pin plug 32A
Overcurrent protection 32A Type C
Maximum power consumption 17 kW
Working power 6.5 kW
Dimensions:
Length 4050 mm x Width 1525 mm x Height 1100 mm
Weight 700 kg
In production.
