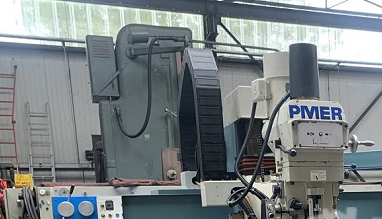

Pmer DPM Vertical 3800 RPM
Ref :
2725941-3-MT
Condition :
Used
Manufacturer :
Pmer
Model :
DPM
Type :
Vertical
Spindle Speed :
3800 RPM
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
PMER DPM
2004
Travel X 780 mm
Travel Y 410 mm
Travel Z 550 mm
Control ANILAM 5000 M
Spindle taper ISO 40
Spindle extension 120 mm (manual)
Spindle speed 70–3800 RPM
Table size 1270 x 320 mm
Maximum spindle nose to table distance 500 mm
Minimum spindle nose to table distance 100 mm
Swivel head right/left
Jog crank
Manual operation with cranks
CNC operation capability
Equipped with lubricant pump
Voltage 380 V
Width 1900 mm
Depth 2100 mm
Height 2500 mm
Weight 2.5 T
