Polar 66

Included Components:

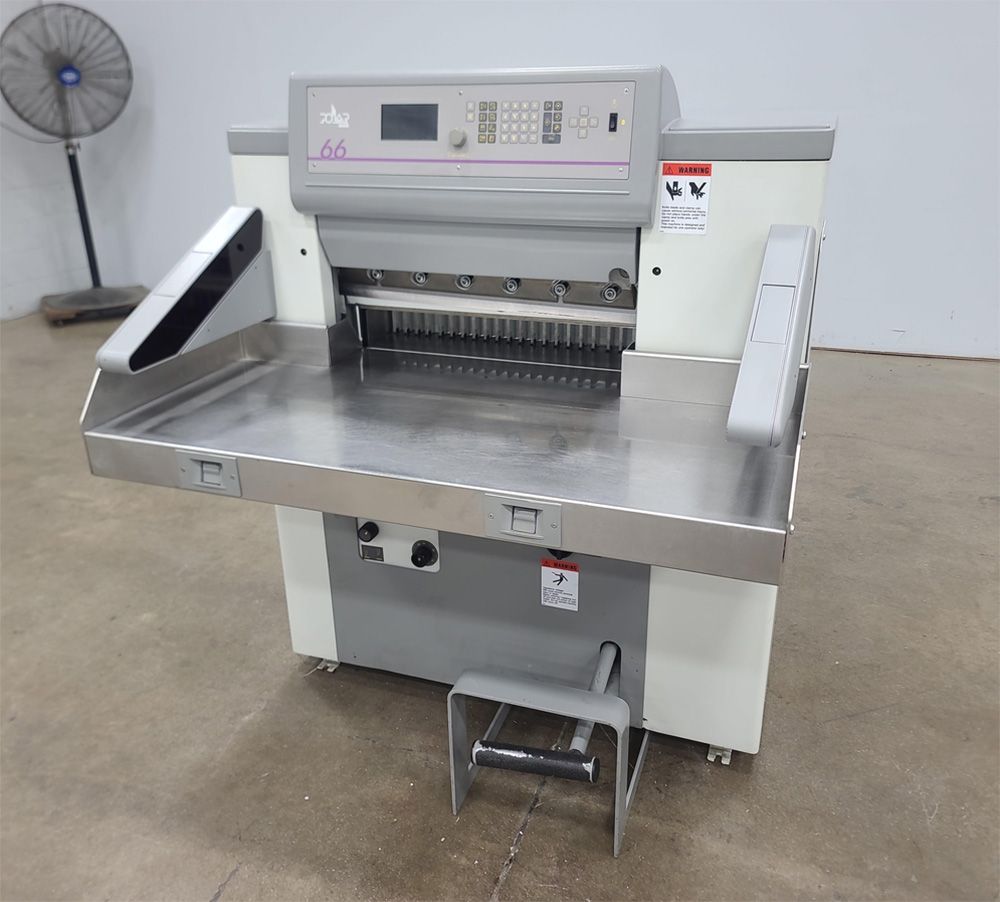

Polar 66 Hydraulic Programmable Paper Cutter
Chrome air table
Powered programmable backgauge
Hydraulic knife and clamp system
Infrared light beam safety system
Digital operator control interface

Features:
Fully hydraulic knife and clamp operation for consistent cutting performance
Programmable powered backgauge with direct positioning capability
Chrome air table improves material movement and handling
Adjustable clamp pressure accommodates a variety of paper stocks
Fraction input with automatic decimal conversion for simplified programming
Machine self-diagnostics with error indication and lifetime cut counter

Applications:
Commercial printing operations
Bindery and finishing departments
Digital print finishing
Book, brochure, and catalog production
General paper and printed material trimming

Specifications:
Cutting Width: 26.4in (66cm)
Maximum Cut Depth: 26.4in
Minimum Cut Without False Clamp Plate: 0.59in
Minimum Cut With False Clamp Plate: 1.97in
Clamp Opening Without False Clamp Plate: 3.94in
Maximum Clamping Force: 3,300 lbs
Clamping Method: Hydraulic and Manual
Backgauge Control: Powered
Adjustable Clamp Pressure
Permanent Knife Position Monitoring
Adjustable Knife Cycle Timing
Infrared Safety Light Beams
Two-Hand Timed Cut Release with Non-Repeat Device
Rear Table Fully Covered
Dimensions: 72in D x 50in W x 59in H
Net Weight: 1,356 lbs
Electrical Requirement: 200-240 VAC, 3-Phase (25A) or 1-Phase (32A)
