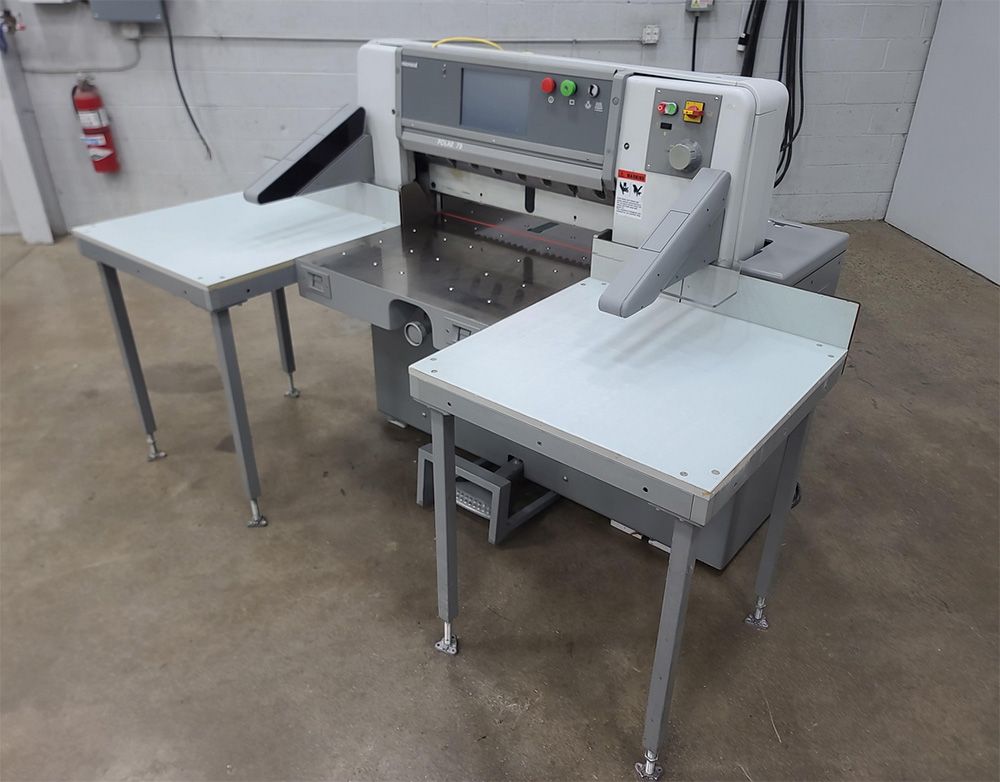

Polar 78ED

Programmable Paper Cutting System
Features:
Programmable Cutting Control With Job Memory
High-Precision Hydraulic Clamp And Knife System
Air Table For Smooth Material Handling
Powered Backgauge For Accurate Positioning
Infrared Safety Light Barriers
Color Display Interface For Operator Control

Specifications:
Maximum Cutting Width: 780 mm (30.7 in)
Maximum Cutting Height: 120 mm (4.7 in)
Minimum Cut: 25 mm (Without False Clamp Plate)
Cutting Speed: Up To 45 Cycles Per Minute
Backgauge Depth: 780 mm
Front Table Depth: 695 mm
Table Type: Air Table With Side Tables
Control System: Programmable With Job Memory (Up To 99 Programs)
Safety System: Infrared Safety Barriers And Guards
Machine Weight: Approx. 1,300–1,500 kg (2,860–3,300 lbs)
