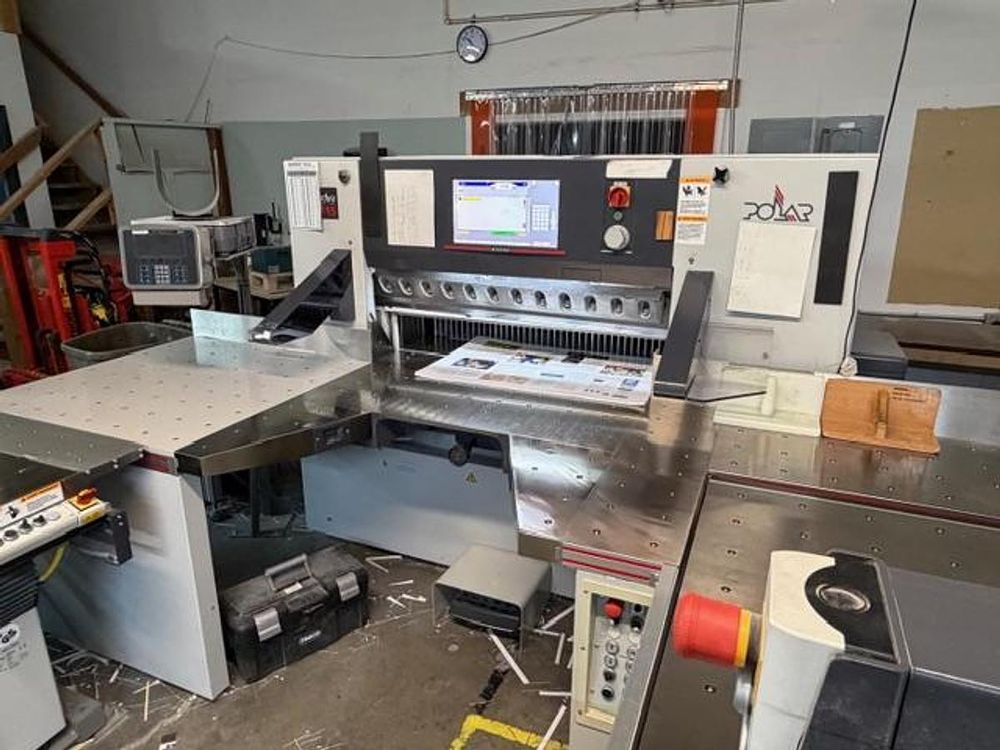

Polar N 115 PLUS

High-speed guillotine cutter (45” class)
LW 1200-4 lift (1,200 kg capacity, ergonomic loading) Age: 2022
RA-4 jogger (stack alignment) Age: 2022
ER 130-5 unloader / Transomat (automated stacking) Age: 2022

Designed for: 70 × 100 cm (40”) format class applications
Cutting width: 1,150 mm (45.28”)
Feeding depth: 1,150 mm (full sheet handling capability)
Max loading height: 165 mm (6.5” stack height)
Knife speed: up to 45 cuts per minute
Backgauge speed: up to 300 mm/sec (high-speed positioning)
Positioning accuracy: ±0.01 mm via DPS measuring system
Minimum cut size: 25 mm (manual & automatic)
Clamp pressure range: 150 – 4,500 daN (wide material range)
Safety clamp pressure: 30 daN (light pressure for sensitive jobs)
Drive system: self-locking worm gear with hydraulic clutch
Construction: one-piece cast iron frame for maximum stability
Knife system: OptiKnife with fine adjustment at lower dead center
Knife setup: HSS knives with electronic depth & thickness correction
Table system: air-blown main table + additional air tables for easy handling
Control interface: 18.5” touchscreen with graphical programming
Software: programmable cutting sequences + block programming + Compucut ready
Program storage: ~1,998 cutting programs with job labeling
Automation features: automatic cut release, repeat calculator, programmable clamp timing
Electrical: 220V / 60Hz, approx. 4.5 kVA power consumption
Machine weight: ~3,230 kg (7,100 lbs)
Safety system: IR light curtain, two-hand cut release, CE & GS certifie
