Polar N-137-AT-HD-PACE

Forma: 137 cm
Automised cutting line – workflow from paper-pile via jogger, rear-table-loading,
turning and infeed to automatic paper-cut with waste-disposal. Automatic pile-offload.
Operator discharge to prepare paper-piles and -pile-exit.

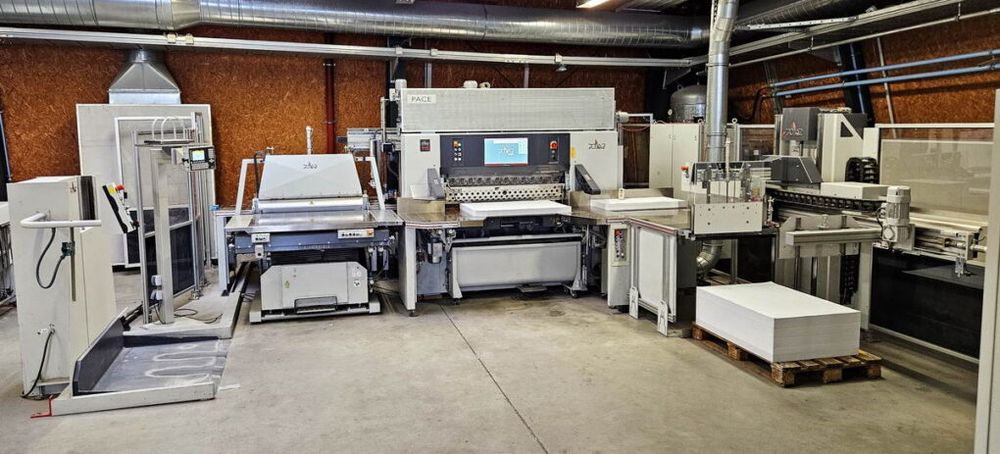

Configuration from the left to right:
Pile-Lift LW-1200-4 with floor-tray, height- and lower-automatic
Automatic Jogger RAH-4, 90×115 cm, chromed table-surface, air-expulsion-roller,
automatic transfer via rear foldable stop backwards to gripper-transportsystem or to the side of fronttable of cutting-machine.
Counting Scale with platform underneath RAH-4, with separate reference scale and display-control.
Center-Machine = Cutting-machine Polar N-137-AT-HD-PACE
Touchscreen-control with programme-automatic for all functions.
Compucut controlling: P-Net Connect and Compucut.
Chromed air cushion table with pneumatic lowerable side-stops and turnable backgauge.
All fronttables with air cushion.
AT= Autotrim = automatic waste-disposal. Waste tray under fronttable, can be connected to an exhaust system
Safety system including guarding of rear table processes.
Autotrans = free supported gripper transport system to load rear table of cutting machine.
Autoturn PACE: automatically turning and positioning of paper ream with a rotation gripper system to all cut-postions,
intermediate-stops with buffer-place, automatic cut-process and automatic waste-disposal via AT Autotrim.
Offloader Transomat ER-130-4, on right side of cutting machine, with OPP optically pallet pointer.
Transparent safety walls with 2 doors. external electric cabinet. knifes, accessories, technical documentation
