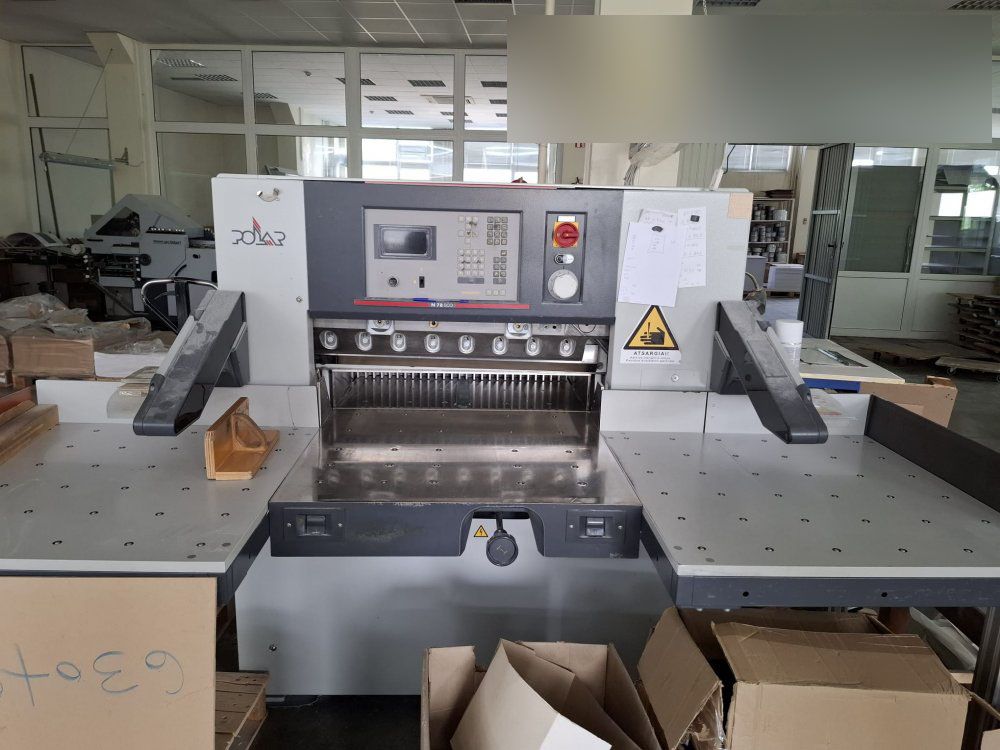

Polar N 78 ECO

HIGH-SPEED-CUTTER N 78 ECO.
Technical data:
Cutting width 78 cm / 30.70"
Feeding height 12 cm / 4.72"
Feeding depth 78 cm / 30.70"
Electric power (main drive) 3.45 kW / 4.75 hp
Weight (net) 1,350 kg / 2,970 lbs
Static floor load 626 daN/m² / 131 lbs/sqft
Width, without side tables 158 cm / 62.20"
Width, with side tables 198 cm / 77.95"
Depth 202 cm / 79.52"
Height 157 cm / 61.81"
Front table length 69.5 cm / 27.36"
Table height 90 cm / 35.43"
Clamp pressure, min. 150 daN / 331 lbs
Clamp pressure, max. 3000 daN / 6614 lbs
Knife thickness 11.75 mm / 0.46"
Knife grinding reserve, max. 2.5 cm / 1"
Smallest cut, w/o false clamp plate 2 cm / 0.78"
Smallest cut, with false clamp plate 7 cm / 2.75"
Backgauge speed 0 - 20 cm/sec.
Specific surface pressure 1.7 daN/cm² / 24 lbs/sqin;
Dynamic surcharge 20%
Supply voltage (three-phase AC) 200 V - 240 V, 50/60 Hz / fuse 20A
Supply voltage (three-phase AC) 360 V - 420 V, 50/60 Hz / fuse 16A
The wire cross-section of the power supply to the machine must correspond to valid regulations in the country of use. The same applies to the plug connectors used.
Hydraulic operating pressure: 16 - 150 bar.
The installation is designed for a maximum permissible pressure of 200 bars.
In good working condition.
