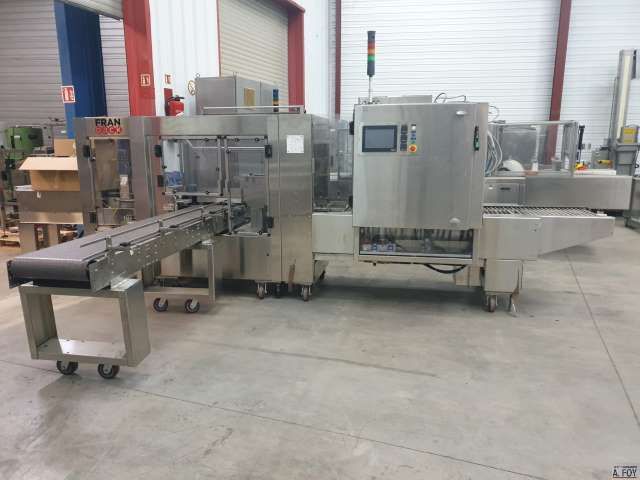

Polypack FH-24-40C Shrink equipment

Conformer wrapper - sealer with shrink tunnel
Weight : 1800 kg
Dimensions : (L x W x H) 5.90 x 3.20 x 1.90 M

Automatic shrink wrapping machine with shrink tunnel.

Equipped:
- Square conveyor with plastic palettes for feeding products width 600 mm - length 2650 mm
- 1 film reel holder.
film to use between 0.25 and 0.30 cof
- sealing bar width 550 mm to weld the film around the products.
- pusher operated by pneumatic cylinder to push the product on the tunnel conveyor.
- shrink tunnel with electric heating thermostat with ventilated air.
- internal dimensions of the tunnel: length 1000 mm - width 560 mm - height 350 mm.
- conveyor in stainless steel mesh tunnel: length 2100 mm - width 560 mm.
- Electric heating of the sealing bar with temperature adjustment by electronic regulator.
- Electric heating of the tunnel with electronic regulator.
- Tunnel conveyor speed variator.
- Stainless steel frame
- Mounted on casters

Maximum production: approximately 30 products/minute depending on the dimension of the product and the nature of the product.

Max product:
length 1210 mm - width 500 mm - height 330 mm

Current equipment:
200x63mm
225 x 35mm
225 x 60mm
225 x 63mm

Mounted on stainless steel frame with castors.
Total electrical power: 19 kw
Maximum compressed air pressure: 6 to 8 bar
