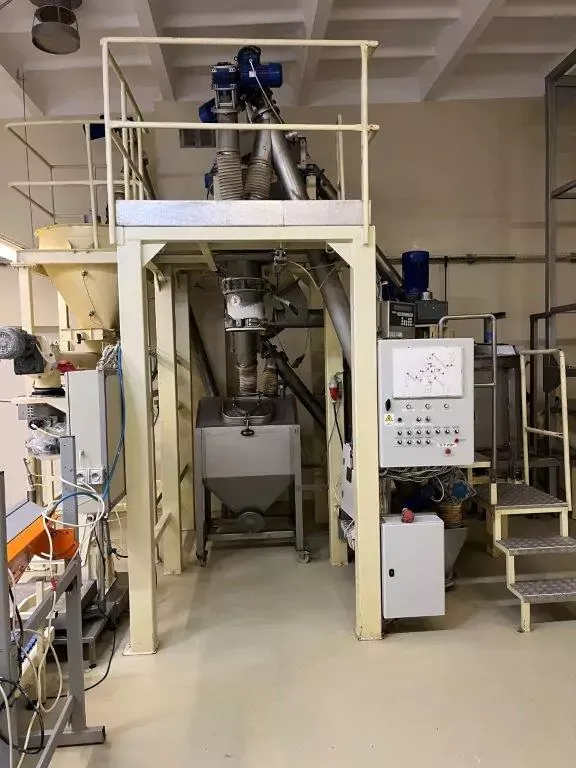

Powder Packing Line in Bags

Metrological static data (according to ĆSN EN 45 501 + AC)
Type 69512520
Class III accuracy
Upper weighing limit (Max) 150 kg
Lower weighing limit (Min) 1 kg
Value of plots (e = d ) Number of parcels 0,05 kg
Tara T subtractive 0-150 kg
Permissible weight error 0-25 kg ± 0.025 kg, 25-100 kg ± 0,050 kg, 100-150 kg ± 0.075 kg



Data on the dosing mode
Weight yield (with a specific bulk weight of 0.7kg/dm3) 150 bags/h
Permissible dose error (depending on dose adjustment) ± 0.2 kg
Dose size 20-50 kg

Energy el.
power supply voltage 3+N PE 400/230V
frequency 50 Hz ± 1 % fluctuation according to ĆSN 99 4102
max. current 16 A
power consumption 8 kVA
Safety class I

Compressed air
No lubrication 0.6 -0.9 MPa
max. consumption 2 Nl/cycle
air quality according to ĆSN ISO 8573-1 class 5
