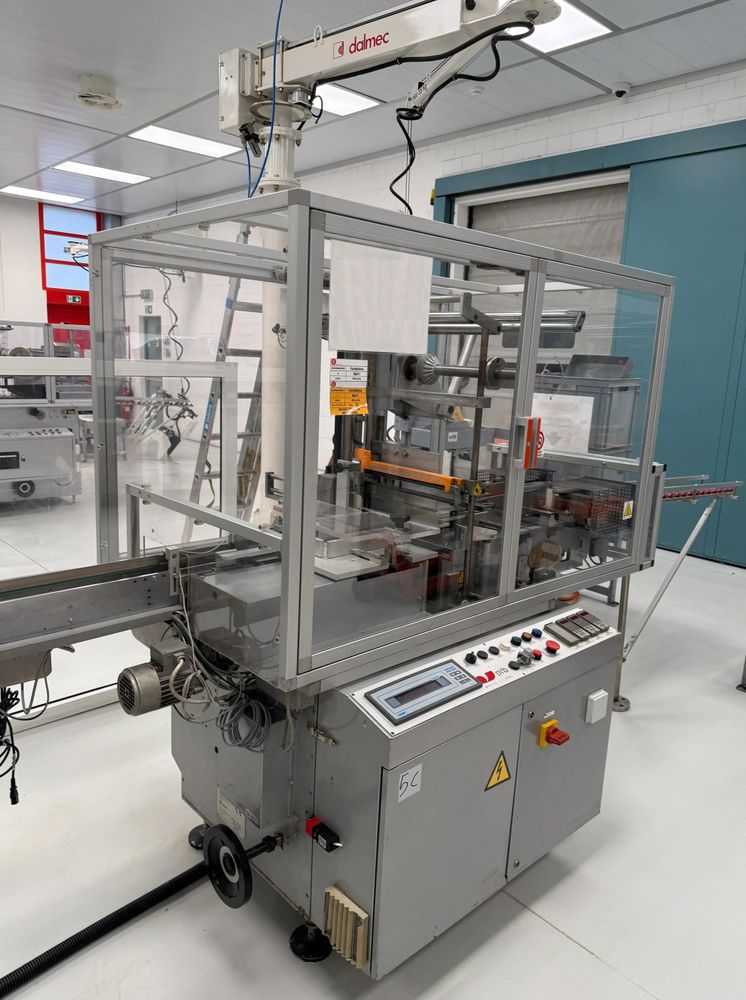

PRB FAR 2001, Shrinkwrapper

MACHINE CHARACTERISTICS
with only mechanical cam movements and fully automatic operation
can bundle cartons into bundles and either wrap or bundle them
mechanical case layering system
synchronised direct drive

PRODUCTION CHARACTERISTICS
Output: 80 packs/min (max)

Package size
Length: 60 mm - 210 mm
Width: 60 mm - 250 mm
Height: 10 mm - 150 mm
Layers number per cycle: determined by a pair of gears changing according to the format

Recommended films
Cellophane MST 350
XST 350 - 40 g/sq.m.
Polypropylene PP biaxially oriented, bi-folded 26 to 32 microns
Shrinkwrap PVC 8 - 10% antistatic 30 microns
Hotmelt lacquered Cellophane 630 MS

ENERGY CONSUMPTION
Power: 2.5 Kw
