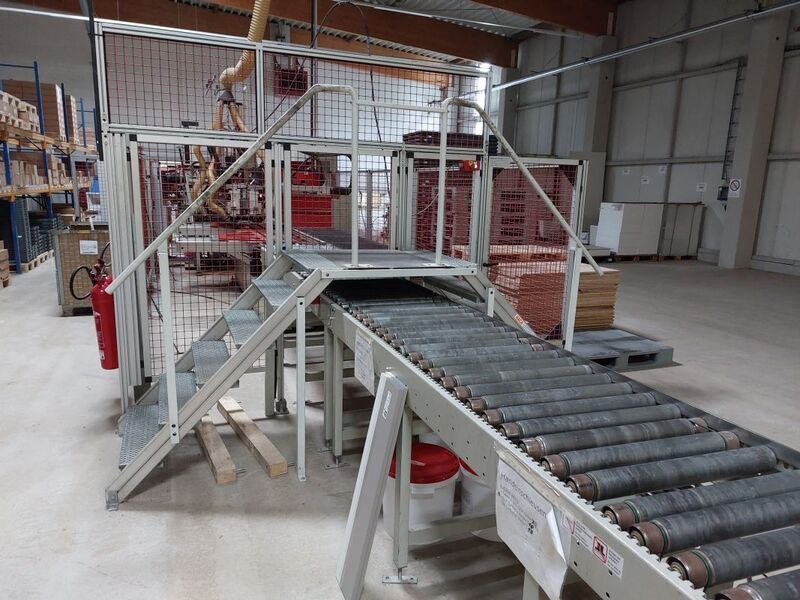

Priess-Horstmann BMA-DLS-CNC

Drilling and assembly line
not rebuilt- without warranty
Electrical connection:
400V +/- 10%, 50 Hz (3 phases with loadable neutral conductor), approx.18 KW.
In accordance with VDE0100-T482, the system must be protected on site by an RCD. on site.

Service unit:
R 1/2” with pressure switch and air accumulator, operating pressure 6-7 bar. Supply line min.
1” (arrangement see A-plan) Extraction: min. 32 m/sec air speed at the respective nozzles of the units (required negative pressure 2200 Pa., capacity 40m3/min).

Paint finish:
Machine and control cabinet pebble gray (AAL 7032)
Supports and protective grille fire red (AAL 3000)
Motors and extraction hoods matt black (RAL 9005)

Workpiece dimensions:
- Length: 2x250 mm 2x1100 mm/1x2500 mm
- Width: 130 mm 700 mm
- Thickness: 16 mm 19 mm
The ratio of part width to part length should not exceed 1:1.
Parts that are narrower than 200 mm only run on one conveyor belt and must therefore
be monitored during transportation, as perfect transportation is not always guaranteed.
Shelves for beveled cabinets are manually inserted directly into the machine
A second longitudinal stop is installed for these parts at width 300.
For the beveled the rear edge of the beveled shelves is placed against the stop, the transverse aligner remains at the maximum opening dimension.
The smallest shelf width (X dimension) is 268 mm.
The smallest carcase height is 298 mm.

Working height: 930+/-20 mm

Cycle times:
Entry and exit with alignment: approx. 6 sec.
per drilling cycle and approx. 200 mm travel approx. 2 sec.
approx. 3 sec. per press-fit cycle.
