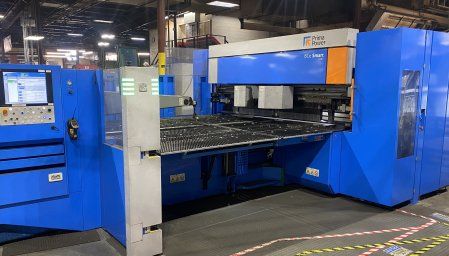

Prima POWER BCE SMART 2220 32 Ton

Bending Force: 32 Ton
Sheet Clamping Force: 52 Ton
Maximum Bending Length: 2250 mm
Minimum Bending Length (with re-entering bends): 350 mm
Minimum Bending Length (without re-entering bends): 215 mm
Minimum Width between the Bends: 160 mm
Sheet Length (minimum/maximum): 215 mm / 2850 mm
Sheet Width (minimum/maximum): 180 mm / 1500 mm
Maximum Panel Diagonal: 3000 mm
Maximum Bending Height: 204 mm
Vertical Distance between the Blades: 210 mm
Maximum re-entering Bend: 55 mm
Maximum Acceptable Planarity of the Blank: 10 mm
Steel UTS 410 N/mm: 2.5 mm Max Length / 3.00 mm Max
Stainless Steel UTS 680 N/mm: 1.8 mm Max Length / 2.00 mm Max
Aluminum UTS 265 N/mm: 3.5 mm Max Length / 4.00 mm Max
Minimum Thickness: 0.5 mm
Minimum External Radius: 1.5 / 2 times the thickness of the sheet
Minimum Height of the 1st Bend: 5 Times the thickness of the sheet
Un: 3 x 400V
In: 3 x 43A
Frequency: 60 Hz
Icu: 10 kA
Full Load Current: 85 A

Equipped With
Prima Power Control
