Printing press 2 50"

Ref : 2742482-4-AW
Condition : Used
Manufacturer : -
Model : Printing press
Number Of Colors : 2
Size : 50"
Year(s) : 2019
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

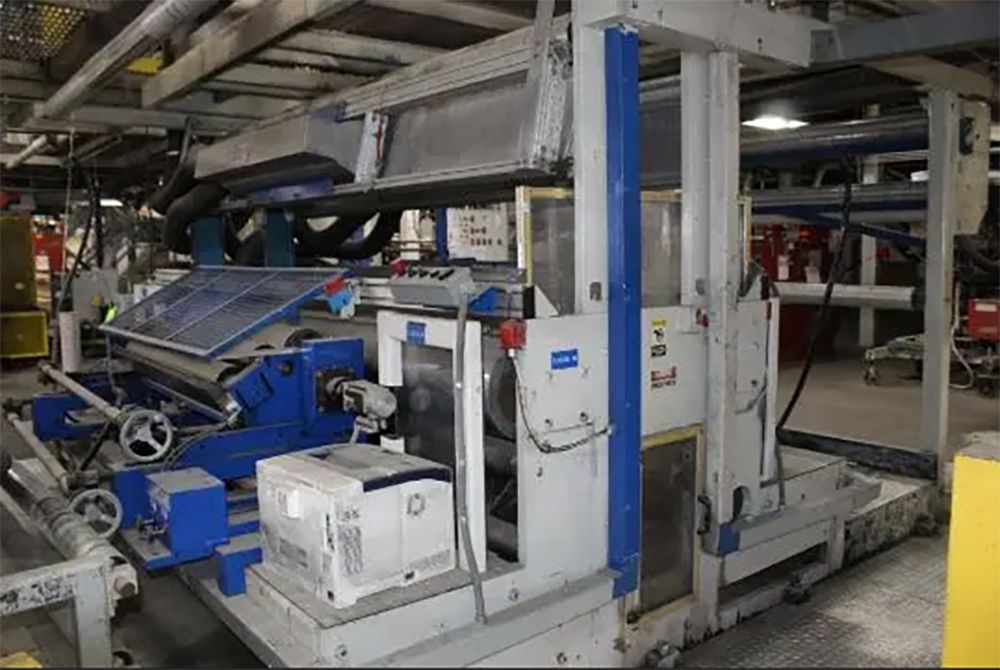

CCS MACHINERY printing press: 124" web width
2-color 50" print width
1+1 and 2+0 print options with registration.
Servo-driven print stations, electric drying system, updated controls/drives in 2019.

Print stations servo driven. Electric drying system, supply and exhaust blower.
Controls and drives updated in 2019.
24" and 36" repeat cylinders included
Full document
Press comes with 2 set of print cylinders (print cylinders have 49” wide face)
First set is 11.766” diameter for a 37.75” repeat
Second set is 7.709” diameter for a 25” repeat

Currently press is set to run only these repeats.
When you install 25” repeat cylinders operator selects “Small Cylinder” on the HMI.
When you install 37.75” repeat cylinders operator selects “Big Cylinder” on the HMI.
Is it possible to add additional repeat cylinders but this will require additional programming (additional cost)
The printing station is fixed, in the center of the web

basic dimensions are:
13’ wide
15’ deep
10’ tall (including overhead platform with drying system)
