Procomac Complete PET Bottle Filling Line

Technical Details:
Capacity: Approx. 12,500 bottles per hour
Bottle Sizes: 500 ml, 750 ml, 1,500 ml
Neck Finish:
PCO 28 / 1881
750 ml additionally with sport cap (PCO 1881)
Equipment & Features:
1. Blowing machine SIPA SFR 8 with 8 cavities incl. preform feeding system, incl. chiller but without preform unloading device and without high pressure compressor
2. Air conveyor GEA Procomac

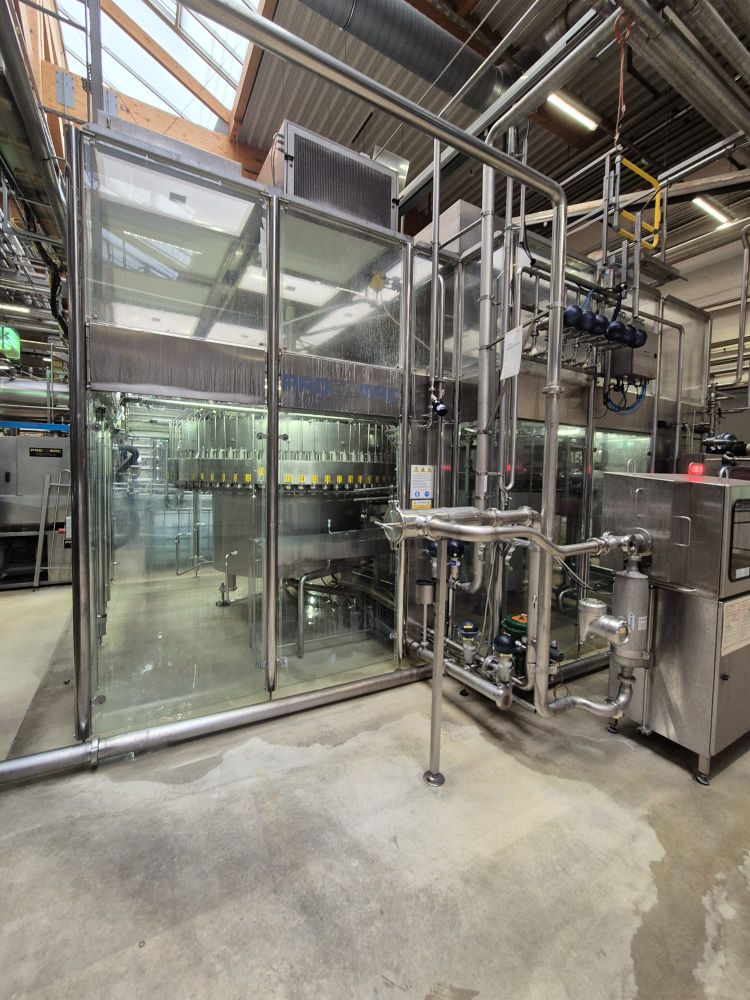

3. Tribloc GEA Procomac 50 / 70 / 12 with 50 rinsing stations, 70 filling valves and 12head plastic screw capper, incl. complete clain room around the machine type “ISO 5”, incl. two sorting units, incl. bottle drying station after the filler, incl. fill height control and cap control after the filler, incl. nitrogen dosing system (for products without CO2)
4. Complete bottle conveyor system GEA Procomac
5. Labelling machine PE Adhesleeve to label self adhesive OPP labels from the roll
6. Foil shrinking machine SMI type SK 450 T incl. heating oven
incl. tray packaging device
7. Tray packer SMI type TF 350
8. Handle applicator Twinpack type MDEL-S
9. Palletizer Procomac type Opera incl. complete pallet conveyor system, incl. pallet magazine, incl. Robopac foil stretching machine, incl. mother pallet handling, incl. Logopack pallet labelling system
10. The mixer is not included in the line.
