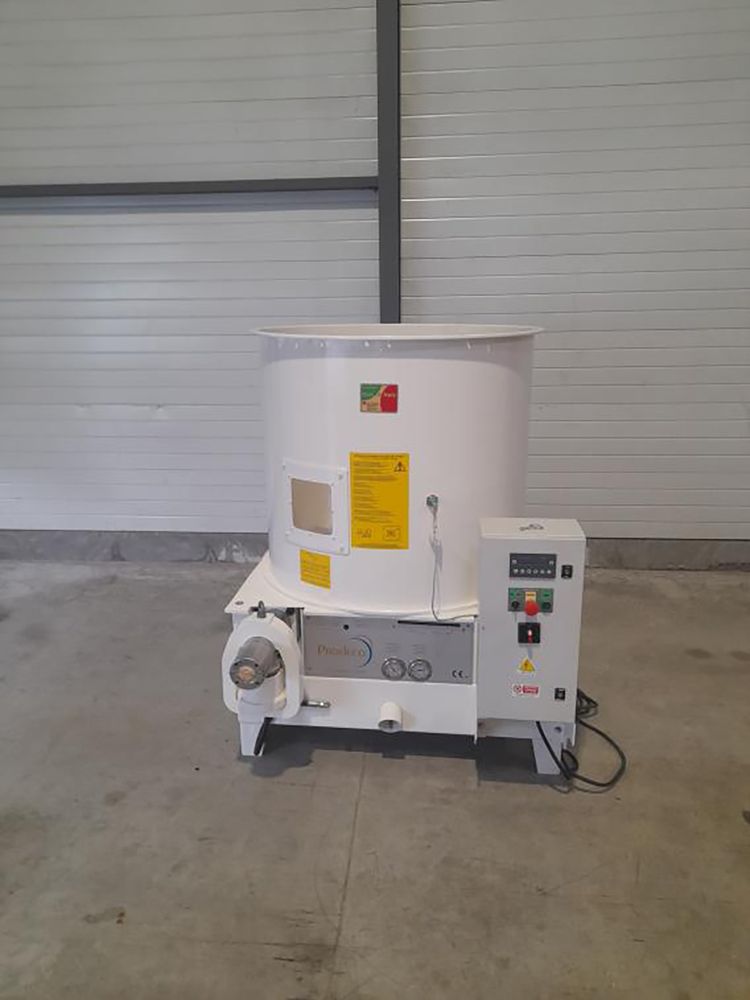

Prodeco E55

BRIQUETTING PRESS
Used Machine
Briquette Diameter: 55 mm
Motor: 5.5 kW (High Efficiency)
Production: 15 to 60 kg/h
Dimensions:
Height: 1,510 mm
Length: 1,700 mm
Width: 1,170 mm
Weight: 600 kg

Technical Specifications:
Machine Type: Hydrodynamic
Cycles per Minute: Approximately 7 cycles at full speed
Cylinders: 3
Vice: Monobloc
Maximum Extrusion Length: 50 mm
Capacitive Probe: For automatic operation
Viewfinder: Included
Shell: 1,000 mm diameter, capacity ~ 0.73 m³
End-of-Cycle Device: Included
Electronic Pressure Gauges: Pressure gauges for the pump and vice
PLC: Siemens Touch Screen
Display: Siemens
Hour Meter: Included
Inductive limit switches: Included
Machine position control: LED
Stamping head: Included
Preheating system: Included
Oil level and temperature sensor: Included
Current stabilizer: Included
Service keys: Included
Voltage: 400V – 50 Hz (different voltages on request)
Standard paint:
Structure: RAL 9010
Protective casing: RAL 9006
Maximum humidity: 15%
Hourly production: Depends on the type of material, grain size, and humidity
