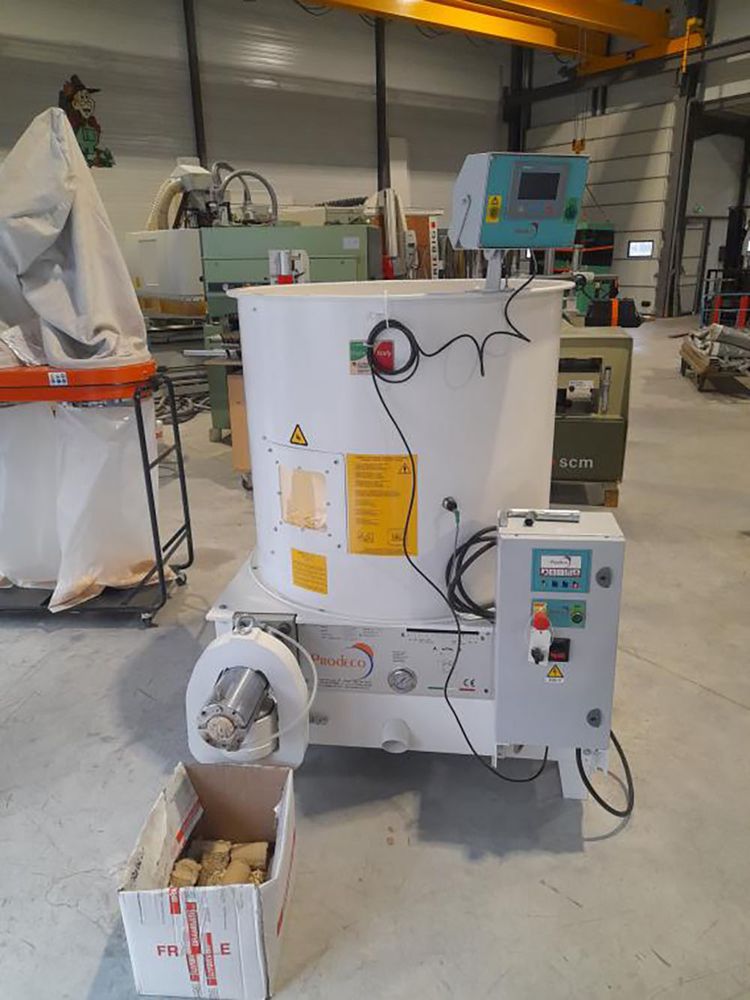

Prodeco E60S BRIQUETTING MACHINE

Technical specifications:
Briquette diameter 60 mm, 7.5 kW motor (High Efficiency).
Production from 40 to 100 kg/h.
Dimensions: H 1,510 mm, 1,850 mm, 1,170 mm. 770 kg.
Motor power: 10 HP
Remote control with control screen

Oleodynamic machine;
Approximately 7 cycles per minute with the machine at full speed;
No. 3 cylinders;
No. 1 monobloc vice;
Maximum length of each expulsion: 60 mm;
No. 1 capacitive probe for automatic operation;
No. 1 sight glass;
Cylinder diameter 1,000 mm. Capacity ~ 0.73 m3;
End-of-cycle device;
Electronic pressure gauges for pump and vice
Siemens Touchscreen PLC
Siemens Display; Hour Meter
Inductive Limit Switches
Machine Position Control via LEDs
Stamping Head
Preheating System
Oil Level and Temperature Sensor
Pre-Settings for Cooling the Oil in the Tank and the Material Outlet Sleeve
Current Stabilizer
Service Keys
Voltage 400V – 50 Hz (Other Voltages on Request)
Standard Paint: RAL 9010 Frame, RAL 9006 Protective Cover
Max. Humidity 15%.
