Prodeco m-1 super

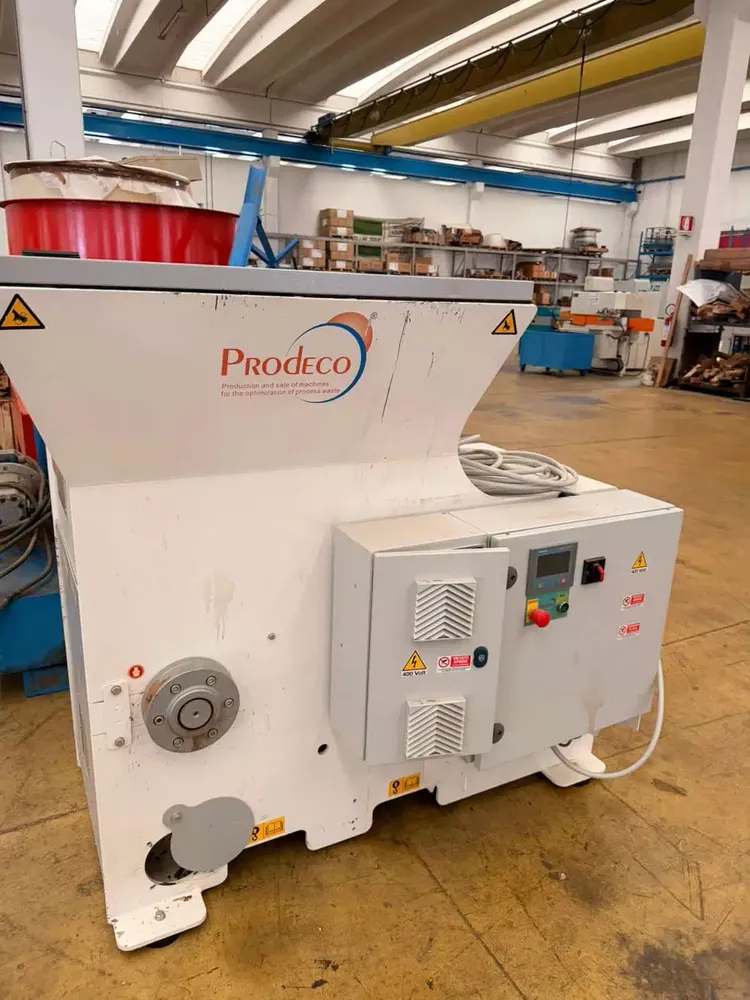

M1 SUPER model shredder – Output 100/300 kg/h – CE These shredders are suitable for shredding wood, pallets, paper, cardboard, and other types of materials.
They consist of: A load-bearing structure made from sheets of different thicknesses to ensure sturdiness and minimize noise during operation.
All structural parts are interlocking to facilitate centering and ensure maximum precision.
A hydraulic power unit for moving the feed drawer, controlled by the PLC. A rotor made of special steel,
constructed from a single body on which the cutting tools, equipped with special steel plates with four cutting edges, are mounted.
The tools are easily interchangeable in the event of wear or breakage as they are connected with screw fastenings.
Counterblade made of hardened, impact-resistant steel. Electrical panel containing all safety and protection devices,
equipped with a PLC that controls the hydraulic power unit during machine operation and manages the reversal of the roller rotation direction in the event of blockage.
Direct-drive gearbox with cast iron body, supported by radial bearings with double roller rows and a reaction arm to withstand even the most demanding situations.
• Output dimensions depending on the various grids, from ø 10 to ø 25.
• Cutting blades: 30×30 hollow face.
• Noise level 70 – 80 dB(A) – depending on the type of material.

DESCRIPTION :
At 1615 mm.
B 1230 mm.
C 1500 mm.
D x E 1000 x 900 mm.
Weight 1140 kg.

CHARACTERISTICS :
Rotor 240 x 600 mm.
Motor kW 11/15 IE-2 (High Efficiency).
Hydraulic power kW 0.5.
Installed Power kW 11.5/15.5.
Number of blades 24+4.
Production Kg/h 100/300.
Output dimensions depending on the various grids, from Ø10 mm to Ø25 mm.
Cutting blades: 30×30 hollow face.
Noise level 70 – 80 db(A) – depending on the type of material.
Voltage 400V – 50 Hz.
