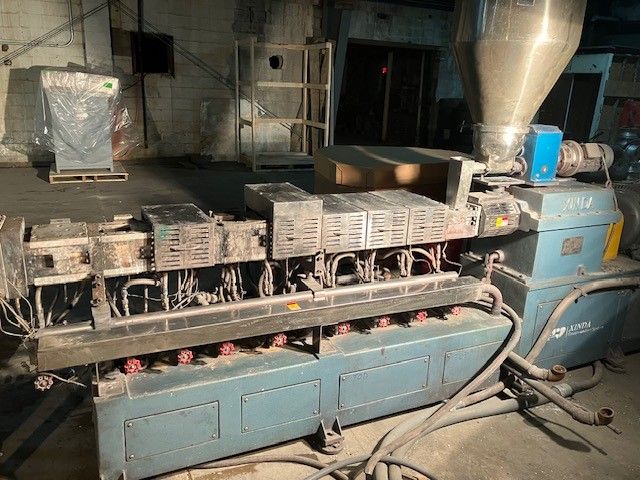

PSHJ-50 Twin Screw Plastic Compounding Extruder Line

Make: Xinda
Barrel Diameter: 50mm
L/D Ratio: 40:1
Output Capacity: Approx. 500 kg/hr (material dependent)
Screw Speed: Up to 500 RPM
Main Motor: 45 kW
Heater Power: 28 kW
Water Pump Power: 0.55 kW
Power: 460V / 60 Hz / 3-Phase

Features:
Parallel twin-screw design with clamshell barrel for
easy cleaning and screw replacement
Modular barrel sections with options for feeding, degassing,
and liquid injection
Vacuum venting system removes volatiles and moisture during processing
Multiple pelletizing options: water strand, water ring, or air-cooled cutting
Hydraulic screen changer
Integrated cooling system with stainless steel piping
and automatic valve control
Includes feeder, water tank, vacuum pump, pelletizer,
vibrator, and auxiliary equipment
PLC-based controls with inverter drive, safety interlocks, and alarms

Applications:
Ideal for plastic compounding, masterbatch production, filler modification,
engineering plastics, and other polymer processing applications.
